Description

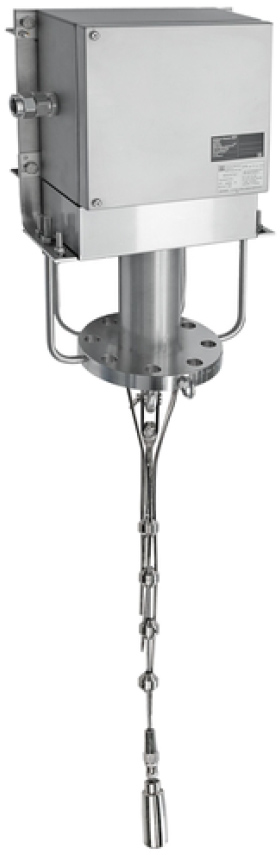

The E+H iTHERM TMS31 MultiSens is a versatile, modular multipoint temperature assembly designed for temperature average detection and profiling in grain, organic bulk material storage silos and in oil, fuel storage tanks. The device’s mechanical robustness and accurate temperature sensors offer the necessary characteristics for safe, reliable and economic product storage operations. In its standard configuration it is available with up to 20 thermocouple (TC) or RTD sensors fitted to a primary metal rope.
Технические характеристики
Features
- Resistance temperature detector
- Intrinsically safe device for use in Ex areas
- Mineral insulated (MI), flexible insert/probe
- 25mm or 37mm outer diameter protection tube
- Flange options:
- 1 1/2in, 2in or 3in ASME
- DN40, DN50, DN80 or DN100
- Straight tip shape
