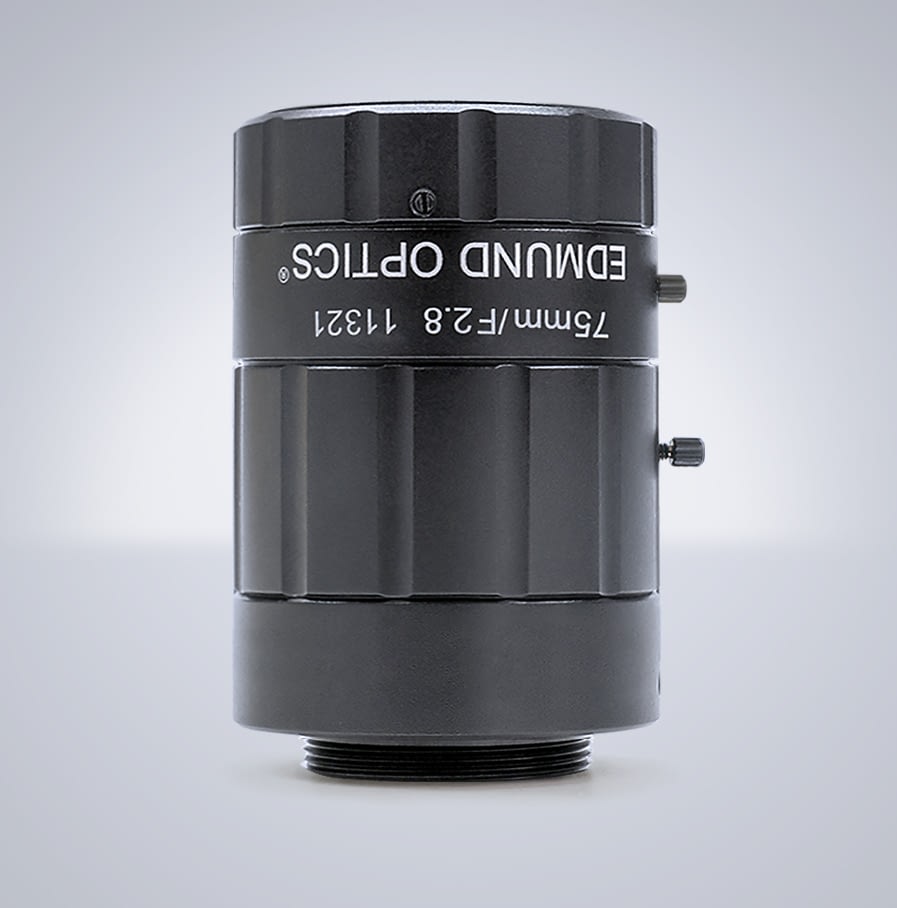

| Edmund Optics Model # | 11-321 |
|---|---|
| LUCID SKU: | EOCA750 |
| Focal Length | 75 mm |
| Aperture | f/2.8 f/16 |
| Working Distance | 500 mm ∞ |
| Max Distortion(%) | 0.33 |
| Filter Thread | M40.5 x 0.5 |
| Coating | MgF2 |
| Length | 84.61mm |
| Number of Elements (Groups) | 8 (5) |
| Outer Diameter | 56mm |
| Type | Fixed Focal Length Lens |
| Numerical Aperture NA, Object Side | 0.0393 |
| Weight | 448g |
| Field of View, APS-C Sensor | 129.6mm 15.3° |
|---|---|
| Maximum Sensor Format | APS-C | Mount | TFL Mount |
| Field of View, 1/1.8 Sensor | 41.4mm 4.9° |
| Field of View, 1/2.5 Sensor | 33.3mm 4.0° |
| Field of View, 1/4 Sensor | 20.7mm 2.5° |
| Field of View, 4/3 Sensor | 99.7mm 11.8° |
| Field of View, 1 Sensor | 73.6mm 8.7° |
| Field of View, 1/2 Sensor | 36.8mm 4.4° |
| Field of View, 1/3 Sensor | 27.6mm 3.3° |
| Field of View, 2/3 Sensor | 50.6mm 6.0° |
