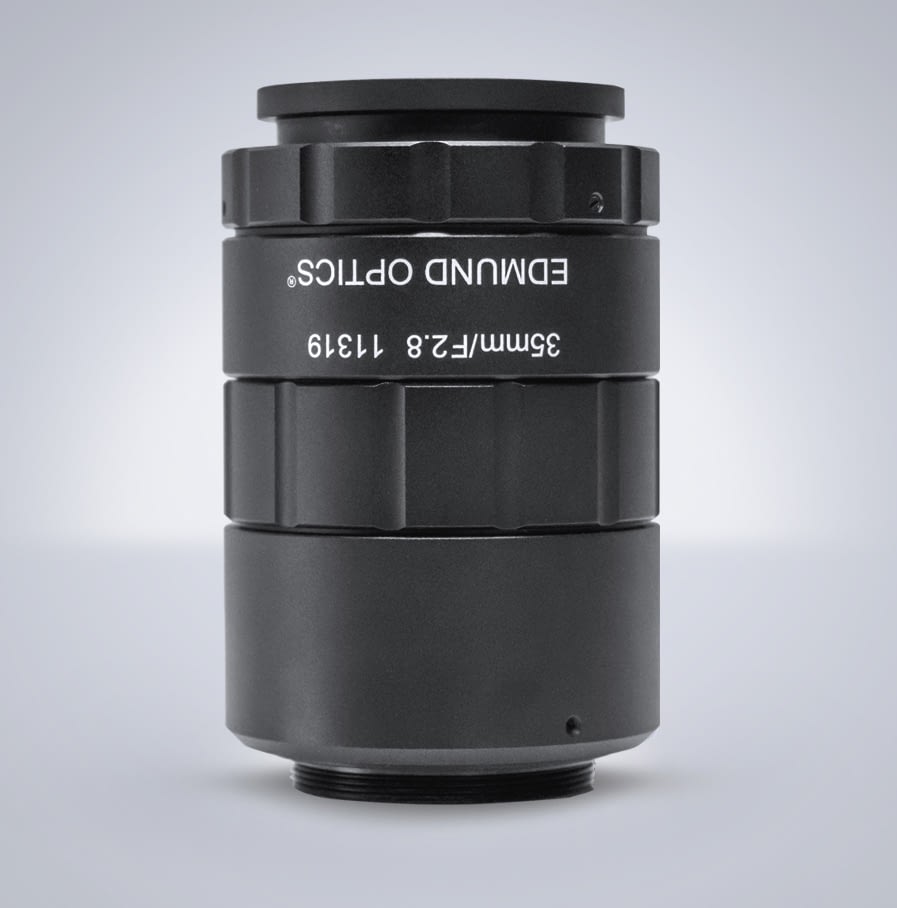

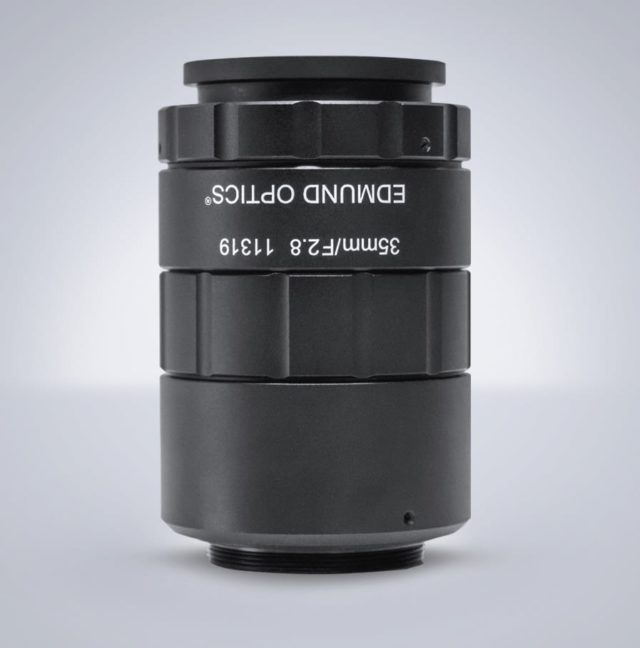

| Edmund Optics Model # | 11-319 |
|---|---|
| LUCID SKU: | EOCA350 |
| Focal Length | 35 mm |
| Aperture | f/2.8 f/16 |
| Working Distance | 200 mm ∞ |
| Max Distortion(%) | -3.01 |
| Filter Thread | M40.5 x 0.5 |
| Coating | λ/4 MgF2 |
| Length | 74.9mm |
| Number of Elements (Groups) | 8 (7) |
| Outer Diameter | 50mm |
| Type | Fixed Focal Length Lens |
| Numerical Aperture NA, Object Side | 0.0275 |
| Weight | 276g |
| Field of View, APS-C Sensor | 137.3mm 35.4° |
|---|---|
| Maximum Sensor Format | APS-C | Mount | TFL Mount |
| Field of View, 1/1.8 Sensor | 44.1mm 11.7° |
| Field of View, 1/2.5 Sensor | 35.6mm 9.5° |
| Field of View, 1/4 Sensor | 22.1mm 5.9° |
| Field of View, 4/3 Sensor | 106.1mm 27.7° |
| Field of View, 1 Sensor | 78.5mm 20.7° |
| Field of View, 1/2 Sensor | 39.2mm 10.4° |
| Field of View, 1/3 Sensor | 20.1mm 5.5° |
| Field of View, 2/3 Sensor | 29.4mm 7.8° |
