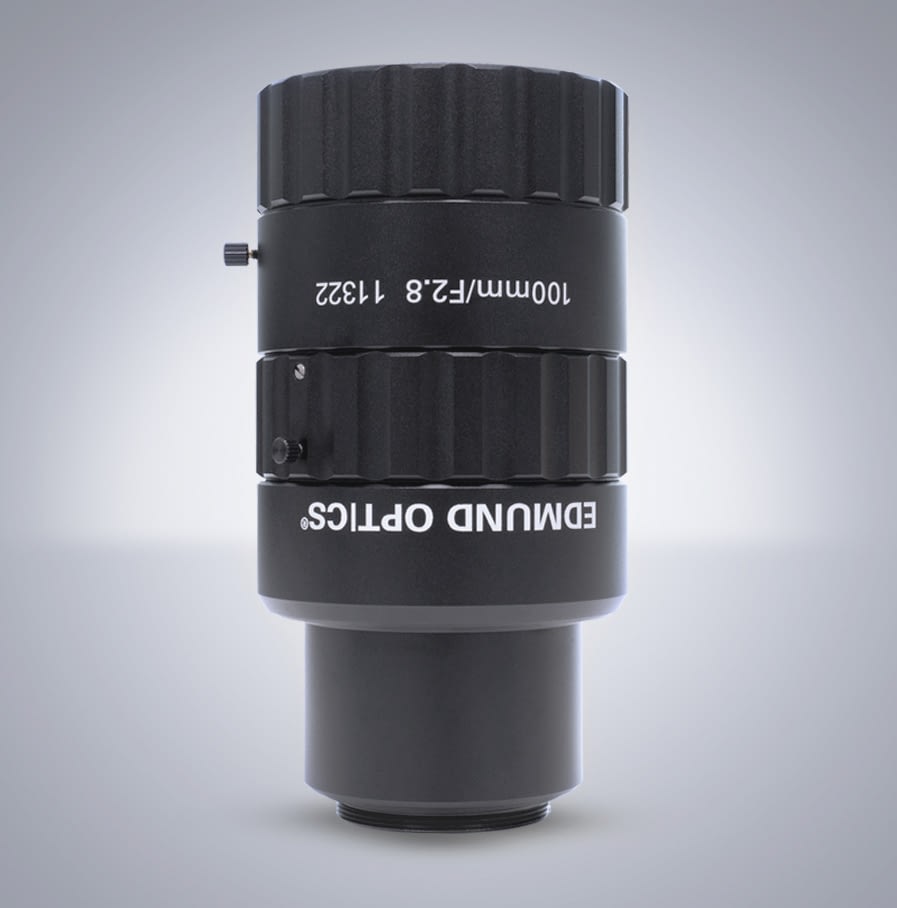

| Edmund Optics Model # | 11-322 |
|---|---|
| LUCID SKU: | EOCA1000 |
| Focal Length | 100mm |
| Aperture | f/2.88 f/22 |
| Field of View APS-C Sensor | 102.1mm 12.7° |
| Working Distance | 500mm ∞ |
| Max Distortion(%) | 0.05 |
| Type | Fixed Focal Length Lens |
| Length | 132.97mm |
| Number of Elements | 8(5) |
| Outer Diameter | 61mm |
| Weight | 597g |
| Coating | MgF2 400-700nm |
| Maximum Sensor Format | APS-C |
| Mount | TFL Mount | Numerical Aperture | 0.0321 |
|---|---|
| Filter Thread | M46 x 0.75 |
| Field of View, 1/1.8 Sensor | 32.8 4.1° |
| Field of View, 1/2.5 Sensor | 26.4mm 3.3° |
| Field of View, 1/4 Sensor | 16.4mm 2.1° |
| Field of View, 4/3 Sensor | 78.8mm 9.8° |
| Field of View, 1 Sensor | 57.6mm 7.3° |
| Field of View, 1.1 Sensor | 64.7mm 8.1° |
| Field of View, 1/2 Sensor | 28.8mm 3.7° |
| Field of View, 1/3 Sensor | 21.9mm 2.7° |
| Field of View, 2/3 Sensor | 40.1mm 5.0° |
