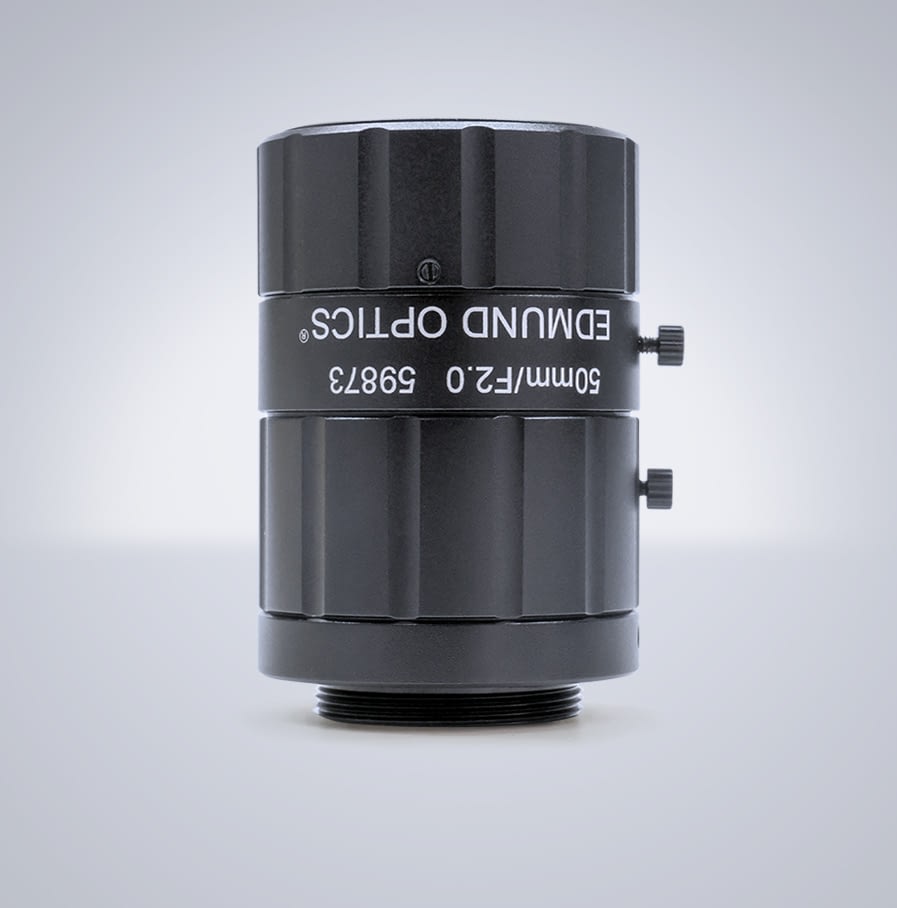

| Edmund Optics Model # | 59-873 |
|---|---|
| LUCID SKU: | EOC0500 |
| Focal Length | 50 mm |
| Field of View @ Max Sensor Format | 42.5mm 8.5° |
| Distortion(%) | |
| Working Distance | 250mm ∞ |
| Field of View, 1/2 Sensor: | 31.0mm 6.2° |
| Field of View, 1/3 Sensor: | 23.0mm 4.6° |
| Field of View, 2/3 Sensor: | 42.5mm 8.5° |
| Number of Elements (Groups) | 6 (4) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 53.7 mm |
| Maximum Sensor Format | 2/3 |
|---|---|
| Coating | 425 675nm BBAR |
| Field of View, 1/1.8 Sensor | 34.7mm 6.9° |
| Field of View, 1/2.5 Sensor | 27.6mm 5.5° |
| Field of View, 1/4 Sensor | 17.2mm 3.5° |
| Aperture (f/#) | f/2 f/22 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.018 |
| Outer Diameter | 35.8 mm |
| Weight | 107 g |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
