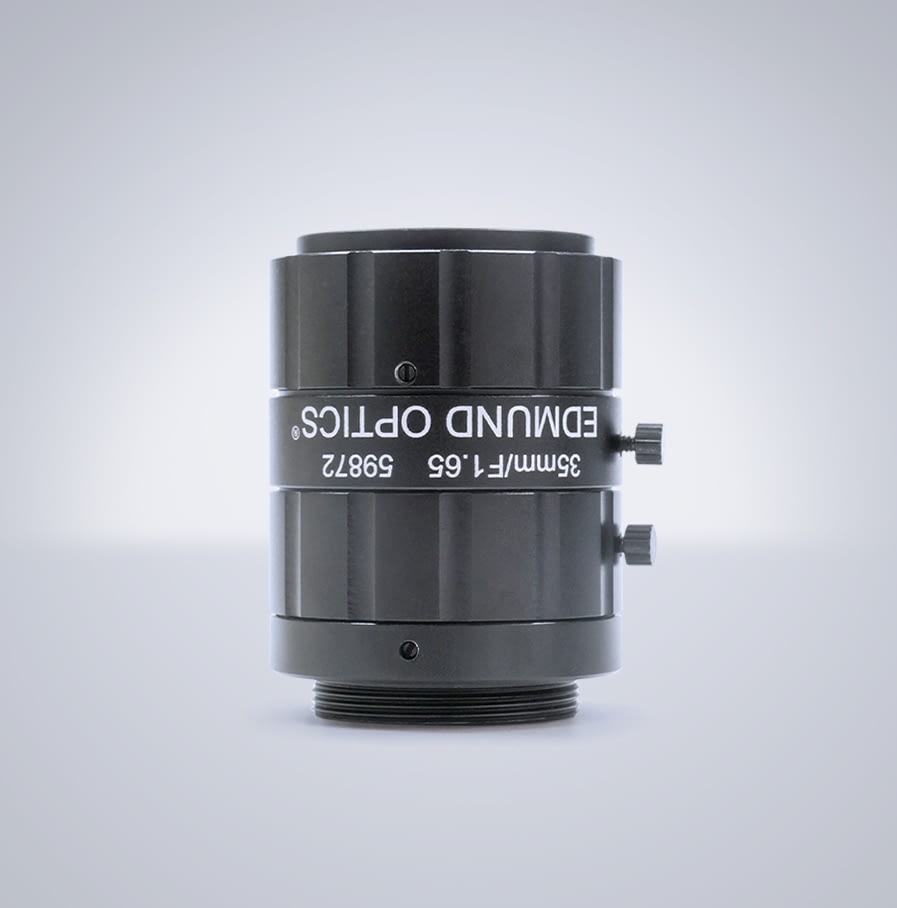

| Edmund Optics Model # | 59-872 |
|---|---|
| LUCID SKU: | EOC0350 |
| Focal Length | 35 mm |
| Field of View @ Max Sensor Format | 39.3mm 14.3° |
| Distortion(%) | |
| Working Distance | 165mm ∞ |
| Field of View, 1/2 Sensor: | 28.5mm 10.4° |
| Field of View, 1/3 Sensor: | 21.4mm 7.8° |
| Field of View, 2/3 Sensor: | 39.3mm 14.3° |
| Number of Elements (Groups) | 7 (6) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 41.0 mm |
| Maximum Sensor Format | 2/3 |
|---|---|
| Coating | 425 675nm BBAR |
| Field of View, 1/1.8 Sensor | 32.0mm 11.7° |
| Field of View, 1/2.5 Sensor | 25.4mm 9.3° |
| Field of View, 1/4 Sensor | 16.1mm 5.9° |
| Aperture (f/#) | f/1.65 f/22 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.021 |
| Outer Diameter | 33.0 mm |
| Weight | 72 g |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
