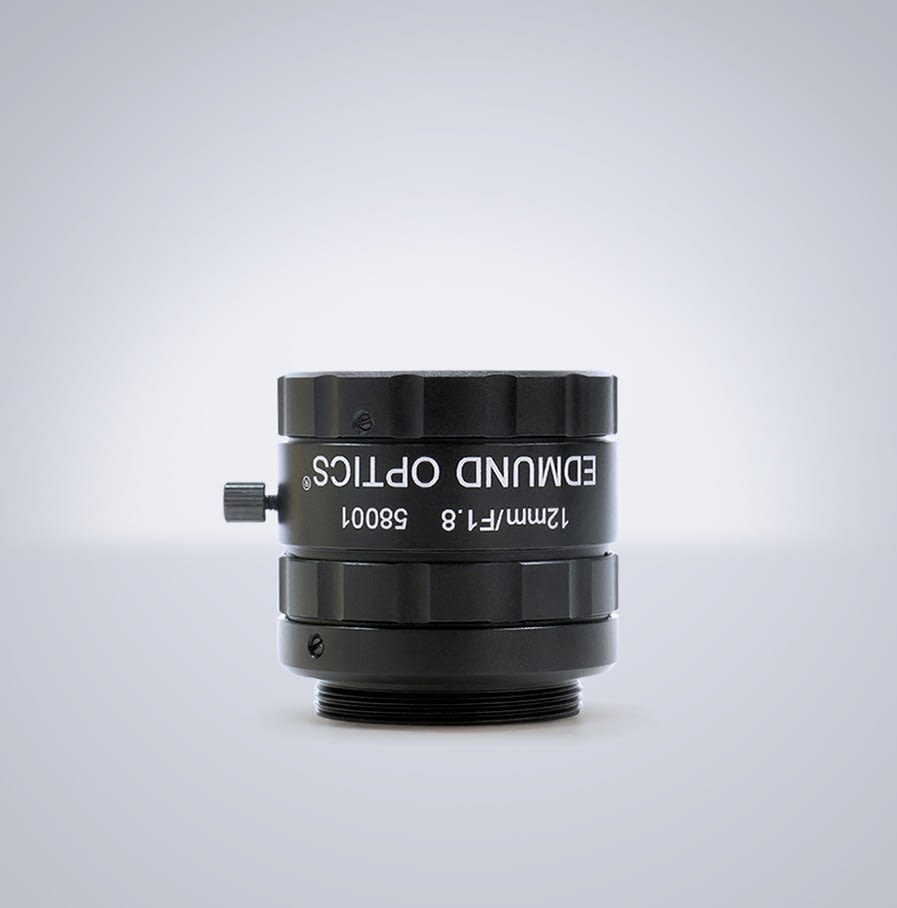

| Edmund Optics Model # | 58-001 |
|---|---|
| LUCID SKU: | EOC0120 |
| Focal Length | 12 mm |
| Field of View @ Max Sensor Format | 83.6mm 41.4° |
| Distortion(%) | |
| Working Distance | 100mm ∞ |
| Field of View, 1/2 Sensor: | 60.2mm 30.5° |
| Field of View, 1/3 Sensor: | 44.9mm 23.0° |
| Field of View, 2/3 Sensor: | 83.6mm 41.4° |
| Number of Elements (Groups) | 7 (7) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 27.9 mm |
| Maximum Sensor Format | 2/3 |
|---|---|
| Coating | 425 675nm BBAR |
| Field of View, 1/1.8 Sensor | 68.0mm 34.2° |
| Field of View, 1/2.5 Sensor | 54.5mm 27.7° |
| Field of View, 1/4 Sensor | 33.6mm 17.3° |
| Aperture (f/#) | f/1.8 f/16 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.007 |
| Outer Diameter | 32.00 mm |
| Weight | 54 g |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
