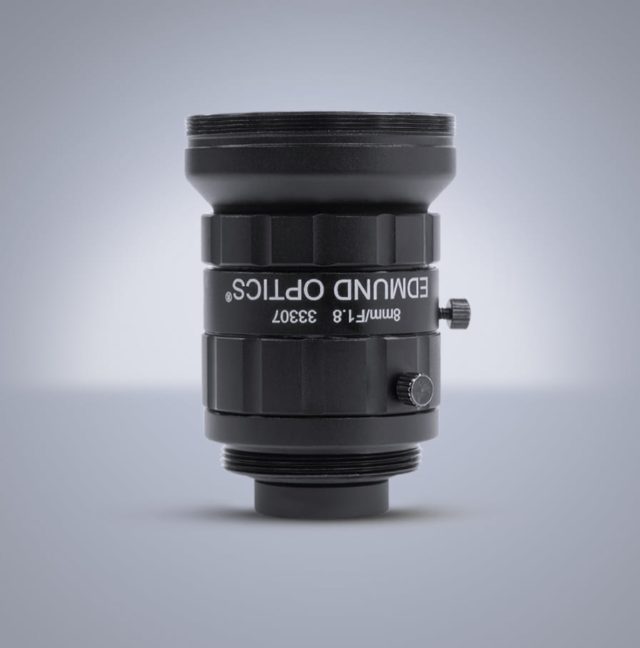

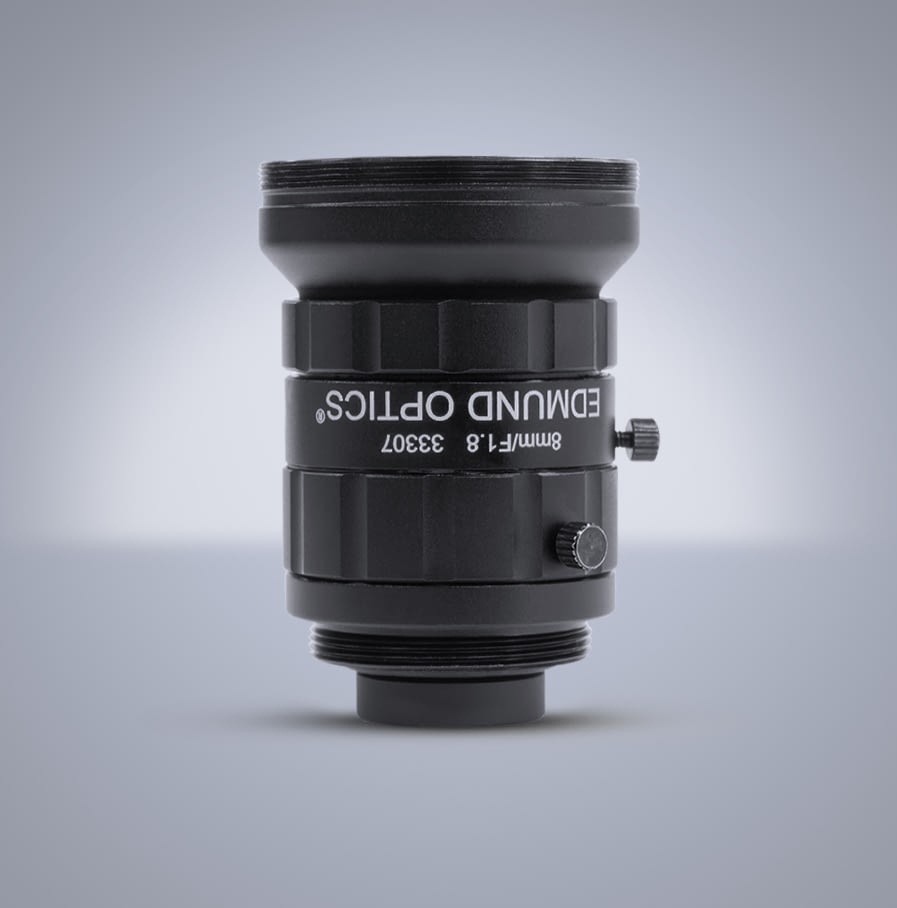

| Edmund Optics Model # | 33-307 |
|---|---|
| LUCID SKU: | EOUC080-2 |
| Focal Length | 8 mm |
| Field of View @ Max Sensor Format | 59.1mm 44.7° |
| Working Distance | 50 mm ∞ |
| Distortion(%) | |
| Field of View, 1/2.5 Sensor | 53.1mm 40.7° |
| Field of View, 1/4 Sensor | 32.2mm 25.6° |
| Number of Elements (Groups) | 9 (8) |
| Optimized Sensor Format | 1/2.5 |
| Type | Fixed Focal Length Lens |
| Maximum Length | 40.61 mm |
|---|---|
| Maximum Sensor Format | 1/2 | Coating | λ/4 MgF2 |
| Aperture (f/#) | f/1.8 f/11 |
| Field of View, 1/2 Sensor | 59.1mm 44.7° |
| Field of View, 1/3 Sensor | 43.4mm 33.9° |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.03 |
| Outer Diameter | 30.00 mm |
| Weight | 78 g |
| Locking Screws Bundled | 4 total: 2x normal, 2x recessed |
