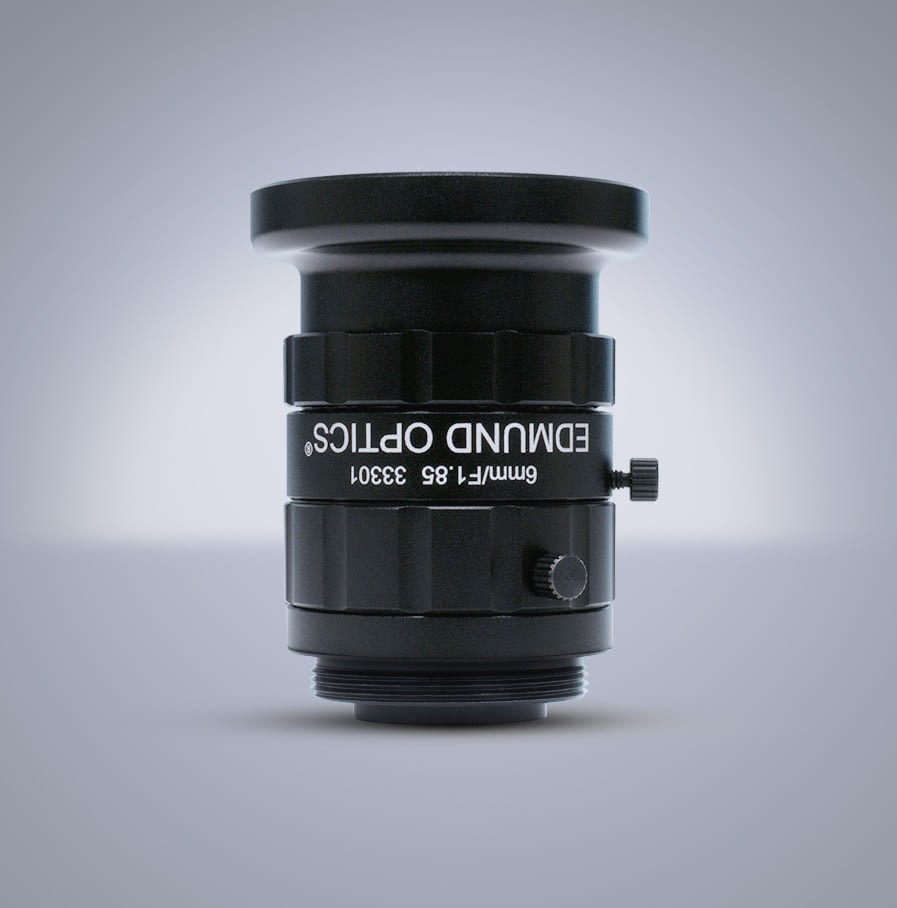

| Edmund Optics Model # | 33-301 |
|---|---|
| LUCID P/N: | EOUC060 |
| Focal Length | 6 mm |
| Field of View @ Max Sensor Format | 73.8mm 60.0° |
| Distortion(%) | |
| Working Distance | 50 ∞ |
| Field of View, 1/2.5 Sensor | 65.9mm 54.6° |
| Field of View, 1/4 Sensor | 39.2mm 34.2° |
| Number of Elements (Groups) | 9 (8) |
| Optimized Sensor Format | 1/2.5 |
| Type | Fixed Focal Length Lens |
| Maximum Length | 40.9 mm |
|---|---|
| Maximum Sensor Format | 1/2 |
| Coating | MgF2 (400-700nm) |
| Field of View, 1/2 Sensor | 73.8mm 60.0° |
| Field of View, 1/3 Sensor | 53.4mm 45.4° |
| Aperture (f/#) | f/1.85 f/11 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.00775 |
| Outer Diameter | 36.00 mm |
| Weight | 67 g |
| Locking Screws Bundled | 4 total: 2x normal, 2x recessed |
