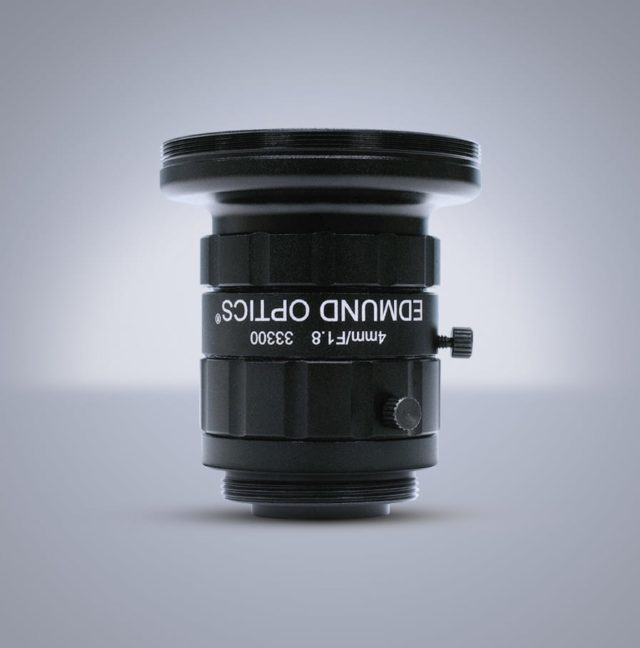

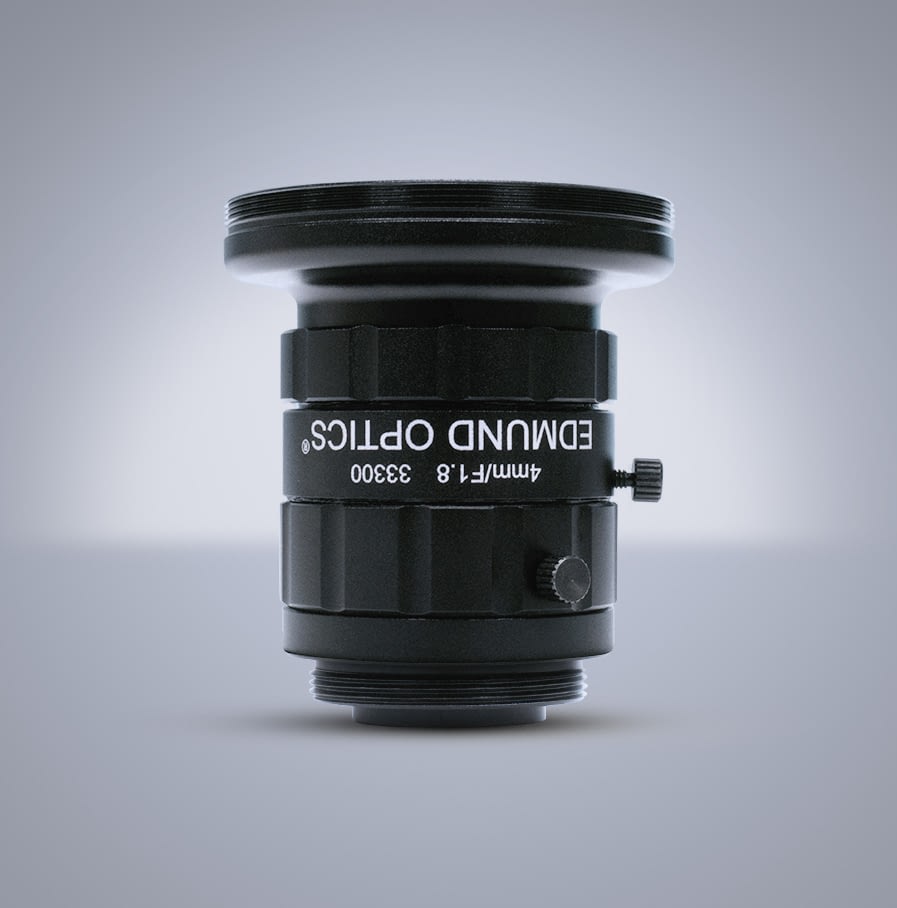

| Edmund Optics Model # | 33-300 |
|---|---|
| LUCID P/N: | EOUC040 |
| Focal Length | 4 mm |
| Field of View @ Max Sensor Format | 23.0mm 84.8° |
| Working Distance | 0 mm ∞ |
| Distortion (%) | |
| Field of View, 1/2.5 Sensor | 20.0mm 77.8° |
| Field of View, 1/4 Sensor | 11.2mm 49.7° |
| Number of Elements (Groups) | 8 (7) |
| Optimized Sensor Format | 1/2.5 |
| Type | Fixed Focal Length Lens |
| Maximum Length | 40.6 mm |
|---|---|
| Maximum Sensor Format | 1/2 | Coating | MgF2 400-700nm |
| Aperture (f/#) | f/1.8 f/11 |
| Field of View, 1/2 Sensor | 23.0mm 84.8° |
| Field of View, 1/3 Sensor | 15.6mm 65.4° |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.089 |
| Outer Diameter | 40.00 mm |
| Weight | 72 g |
| Locking Screws Bundled | 4 total: 2x normal, 2x recessed |
