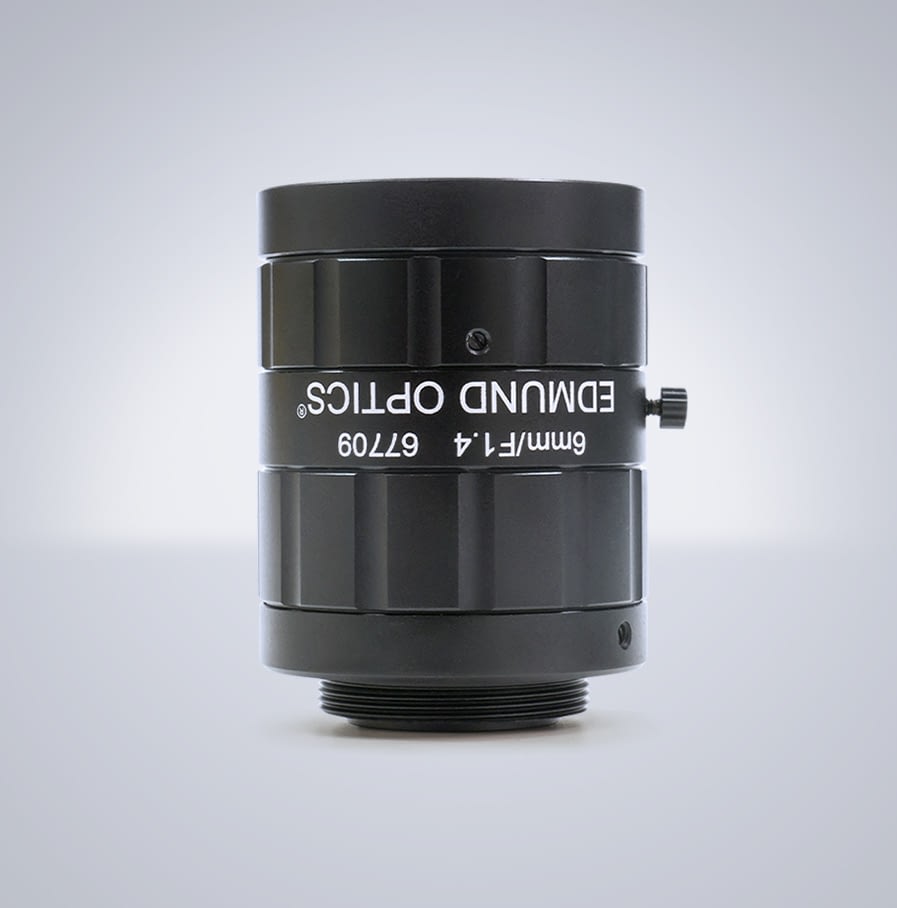

| Edmund Optics Model # | 67-709 |
|---|---|
| LUCID SKU: | EOC0060 |
| Focal Length | 6 mm |
| Field of View @ Max Sensor Format | 110.3mm 62.1° |
| Distortion(%) | |
| Working Distance | 75mm ∞ |
| Field of View, 1/2 Sensor: | 96.7mm 55.9° |
| Field of View, 1/3 Sensor: | 71.0mm 42.7° |
| Number of Elements (Groups) | 9 (7) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 48.9 mm |
| Maximum Sensor Format | 1/1.8 |
|---|---|
| Coating | 425 675nm BBAR |
| Field of View, 1/1.8 Sensor | 110.3mm 62.1° |
| Field of View, 1/2.5 Sensor | 85.42mm 50.2° |
| Field of View, 1/4 Sensor | 52.68mm 32.4° |
| Aperture (f/#) | f/1.4 f/16 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.005 |
| Outer Diameter | 36.00 mm |
| Weight | 102 g |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
