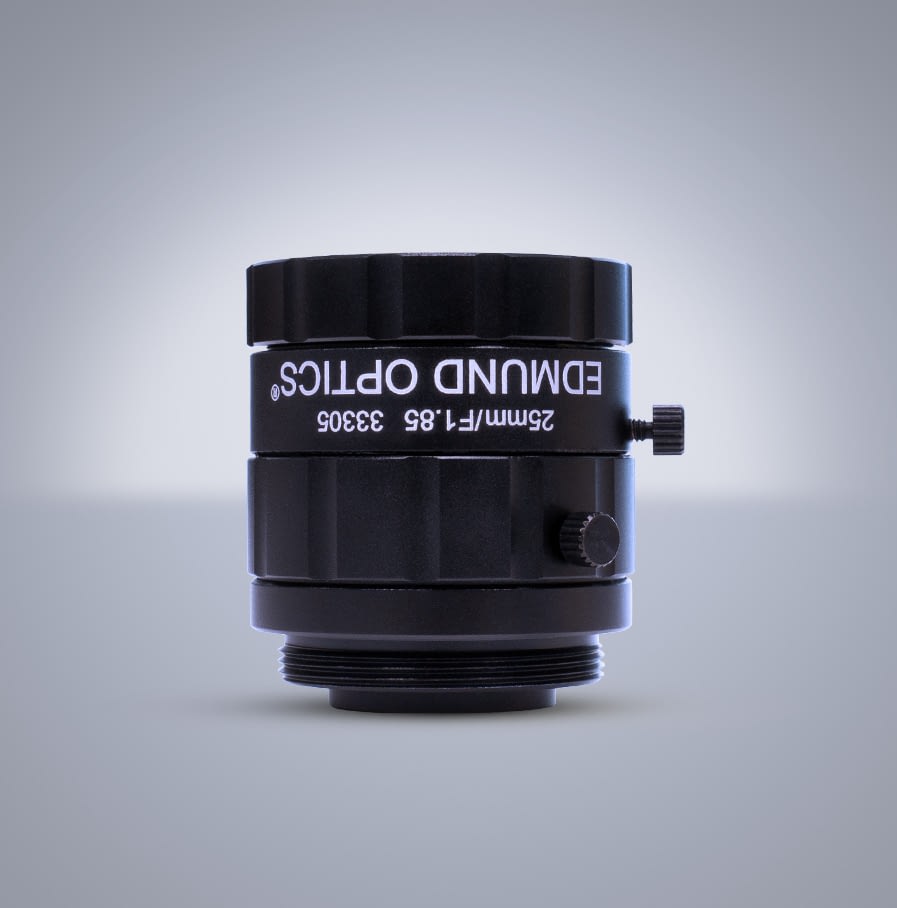

| Edmund Optics Model # | 33-305 |
|---|---|
| LUCID SKU: | EOUC250 |
| Focal Length | 25 mm |
| Field of View @ Max Sensor Format | 60.8mm 16.4° |
| Working Distance | 200 mm ∞ |
| Distortion(%) | |
| Field of View, 1/2 Sensor | 54.0mm 14.6° |
| Field of View, 1/3 Sensor | 40.4mm 11.0° |
| Number of Elements (Groups) | 7 (5) |
| Optimized Sensor Format | 1/2.5 |
| Type | Fixed Focal Length Lens |
| Maximum Length | 31.28 mm |
| Maximum Sensor Format | 1/1.8 |
|---|---|
| Coating | MgF2 400-700nm |
| Aperture (f/#) | f/1.85 f/16 |
| Field of View 1/2 Sensor | 55.6mm 44.1° |
| Field of View, 1/1.8 Sensor | 60.8mm 16.4° |
| Field of View, 1/2.5 Sensor | 48.9mm 13.2° |
| Field of View, 1/4 Sensor | 48.9mm 13.2° |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.0314 |
| Outer Diameter | 30.00 mm |
| Weight | 48 g |
| Locking Screws Bundled | 4 total: 2x normal, 2x recessed |
