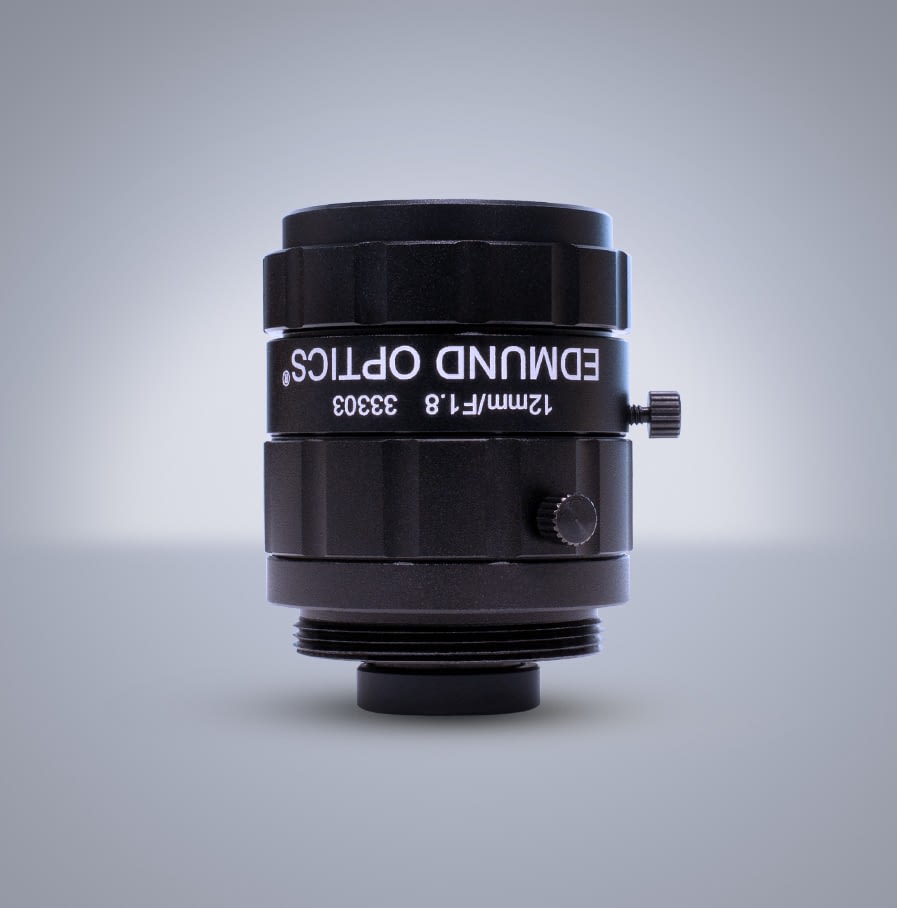

| Edmund Optics Model # | 33-303 |
|---|---|
| LUCID SKU: | EOUC120 |
| Focal Length | 12 mm |
| Field of View @ Max Sensor Format | 70.3mm 34.0° |
| Working Distance | 100 mm ∞ |
| Distortion(%) | |
| Field of View, 1/2 Sensor | 62.2mm 30.3° |
| Field of View, 1/3 Sensor | 46.3mm 22.8° |
| Number of Elements (Groups) | 7 (6) |
| Optimized Sensor Format | 1/2.5 |
| Type | Fixed Focal Length Lens |
| Maximum Length | 35.2mm |
| Maximum Sensor Format | 1/1.8 |
|---|---|
| Coating | MgF2 400-700nm |
| Aperture (f/#) | f/1.8 f/11 |
| Field of View 1/1.8 Sensor | 70.3mm 34.0° |
| Field of View, 1/2.5 Sensor | 56.2mm 27.5°/td> |
| Field of View, 1/4 Sensor | 34.5mm 17.1° |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.029 |
| Outer Diameter | 30.00mm |
| Weight | 49g |
| Locking Screws Bundled | 4 total: 2x normal, 2x recessed |
