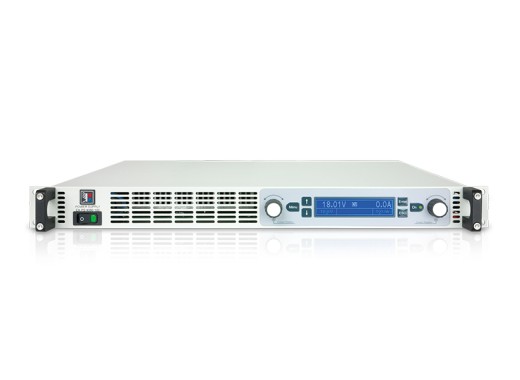

The EA-PS 9360-30 1U lab power supply from Elektro-Automatik belongs to the EA-PS 9000 1U series and features a power output of 3000W. This rack-mountable power supply has an output voltage of 0-360V and an output current of 0-30A.
EA’s lab power supplies are microcontroller controlled digital power supplies with good functionality. These relatively inexpensive power supplies offer flexible ‘auto-ranging’. This allows them to offer EITHER a high current OR a high voltage within the power offered. There is a picture of this in the images above. The power supply indicates when it is operating in CC (constant current), CV (constant voltage) or CP (constant power) mode. In addition, the lab power supplies contain an LCD display with an accurate indication of the current current and voltage in 4 digits.
The power supplies offer overvoltage protection, overcurrent protection, overpower protection and in addition over temperature protection. Also, the power supplies can be managed and controlled both analog and digital, making the EA-PS 9000 1U series very comprehensive and reliable.
Models
The main differences between the models of the EA-PS 9000 series are shown in the table below.
Model PS 9080-50 1U PS 9200-25 1U PS 9360-30 1U PS 9500-20 1U Output current 0 — 50 A 0 — 25 A 0 — 30 A 0 — 20 A Output voltage 0 — 80 V 0 — 200 V 0 — 360 V 0 — 500 V Power 1500 W 1500 W 3000 W 3000W Ripple voltage Ripple current Price 2400 €2,400.00 Excl. VAT 2400 €2,400.00 Excl. VAT 3000 €3,000.00 Excl. VAT 3200 €3,200.00 Excl. VAT Specifications Input 100 — 264 V / 45 — 65 Hz Adjustment deviation Voltage: <, 0.1 % Current: <, 0.2 % Power: <, 1 % Resolution Voltage: <, 0.05 % Current: <, 0.15 % Connectivity USB, Ethernet, Share Bus, remote sensing, analog interface Dimensions 482 x 42 x 500 mm (19′ x 1U x 500 mm) Weight 11.0 Kg Accessories
The EA-PS 9360-30 1U lab power supply comes with the following accessories:
- Power cord
