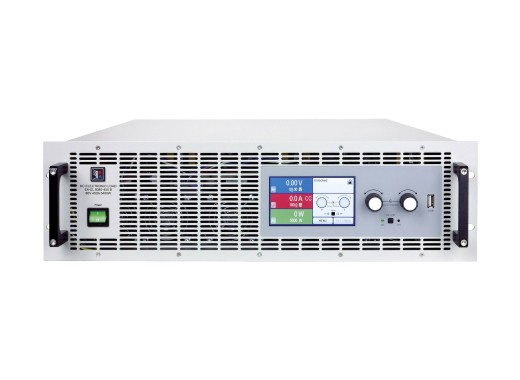

Elektro Automatik EL9080-340B Electronic load is able to handle loads up to 340A, 80V with a peak power of 4800W. This is a 19′, 3U rack-mounted electronic load with a lot of communication interfaces like USB-A in the front and analogue interface, USB-B, master-slave bus in the back, and an extra slot for a pluggable digital interface. Its 4.3′ TFT colour touchscreen, two rotary knobs which have pushbutton functionality, and the communication ports on the rear give it an intuitive operating mode. The included waveform generator with 6 different waves and the share-bus on the back side give you a lot of options regarding testing. The share-bus provides the load to connect an extra load parallel where symmetric current distribution is needed, it also is able to be connected to a power supply to form a two-quadrant setup. This can only be done with certain series from EA like the EA-PSI/PS 9000, the other loads from EL 9000B, and the ELR 9000 series.
Model overview
The main differences between the models of the EL 9000 B series are shown in the table below.
Model EL 9080-170 B EL 9080-340 B EL 9080-510 B Peak Power 2400 W 4800 W 7200 W Voltage 80 V 80 V 80 V Current 170 A 340 A 510 A Price 4000 Regular Price: €4,250.00 Now: €4,000.00 Excl. VAT 6450 €6,450.00 Excl. VAT 8400 €8,400.00 Excl. VAT Specifications Steady Power at 21°C3000 W Resistance0.023 — 7.5 Static modes CC, CR, CV, CP ProtectionOPP, OCP, OVP, OTP, PF InterfacesUSB-A, USB-B, analogue, Master-Slave Display 4.3′ TFT touch screen Dimensions433 x 133 x 568 mm Weight13.0 kg Accessories
The EL9080-340B electronic load comes with
- USB cable (1.8m)
- Share Bus plug
- Remote sensing plug
- Set of DC terminal cover
- Main cord
