| Multicarrier, multichannel W-CDMA personality for Option UND |
| Multichannel CDMA2000 personality |
| High-stability timebase |
| High-performance pulse modulation |
| Moves front panel connectors to rear |
| Adds real-time 3GPP W-CDMA personality |
| Real-time cdma2000 personality |
| Real-time EDGE personality |
| GSM/EDGE Base-station Loop-back test capability |
| Signal Studio for 1xEV-DO |
| Bit Error Rate Analysis |
| Single Channel CDMA option |
| WCDMA, special option (per Keysight) |
| Improves ACP performance for TETRA, CDMA, and W-CDMA |
| Internal I/Q baseband generator |
| I/Q Baseband Generator with 8 Mbit Pattern RAM |
| Multichannel, multicarrier CDMA personality |
| Internal bit-error-rate analyzer |
| Real-time I/Q baseband generator |
| Add 7 Mbits RAM to Option UN8 |
| Alternate timeslot power level control |
| High power with mechanical attenuator |
| Internal dual arbitrary waveform generator |
Additional Features:
- Frequency range: 250 kHz-4 GHz
- Underrange: 100 kHz
- Resolution: 0.01 Hz
- Power requirements: 90 to 254 V, 50, 60, or 400 Hz, 200 W maximum
- High spectral purity
- Flexible architecture, upgrade paths for options
- Choice of electronic ormechanical attenuator
- Superior level accuracy
- Wideband FM and Phase Modulation, AM and Pulse Modulation
- Step sweep (frequency, power and list)
- Built-in function generator
- Lightweight, rack-mountable

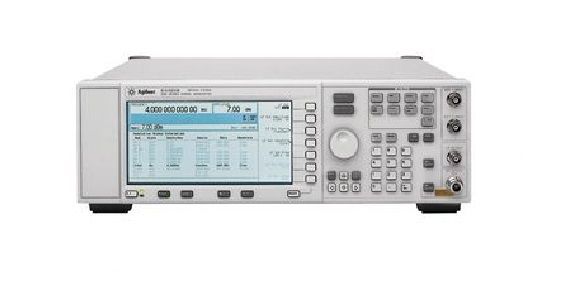

The Agilent E4426B ESG-AP RF Signal Generator provides outstanding phase-noise performance and analog modulation features for all general-purpose test needs. The Agilent E4426B offers excellent performance with superior quality, reliability and worldwide support. It provides comprehensive analog modulation capabilities, including AM, FM, phase modulation and pulse modulation. The Agilent E4426B is ideally suited to meet the demanding requirements of today»s receiver test, component test and local oscillator application.
Standard Agilent Technologies ESG family RF signal generators incorporate a broad array of capabilities for testing both analog and digital communications systems. Adding flexible options provides a test solution that will evaluate the performance of a communication system to the requirements of nearly all current and proposed air interface standards. Many test functions can be customized to meet the needs of proprietary and other nonstandard wireless protocols as well. You can configure your instrument to address a wide variety of tests—from altering nearly every aspect of a digital signal or signal operating environment, to creating experimental signals. This flexibility, along with an architecture that accepts future enhancements makes the ESG family an excellent choice for wireless communications system testing now and in the future.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 4 GHz |
