| Yellow spectrum analyzer backpack |
| Color Display |
| Low emissions shielding |
| Bluetooth FSK demodulator |
| ACPR dynamic range extension |
| Serial Interface |
| High Stability Frequency Reference |
| Time-gated spectrum analysis |
| Tracking generator |
| 75 OHM INPUT (E4411B) |
| Narrow resolution bandwidths |
| Preamp |
| Noise Figure |
| Phase Noise |
| Bluetooth measurement personality |
| Modulation Analysis |
| ESA to 89601A VSA software link |
| EDGE UPGRADE TO GSM MEASUREMENT PERSONALITY |
| Type N Input Connector |
| GPIB and Centronics interface |
| IF and sweep ports |
| EMI DETECTORS AND FM DEMODULATION |
| Fast time-domain sweep |
| External Mixing |
| Enhanced Memory Upgrade |
| RF/Digital communication hardware |
| Performance Bundle (1D5+1DR+1DS) |
| Digital Signal Processing and Fast ADC |
| RF Communications Hardware |
| FM Demodulation |
| cdmaOne Measurement Personality |
| GSM/GPRS measurement personality |
| Includes IF/sweep port (A4J) and GPIB connection (A4H) |
| COMMUNICATIONS TEST ANALYZER (B7D/B7E/1D5/1DR/BAA/231) |
| 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz |
| Standard analyzer with tracking generator (1DN,AYX, BAA) |
| 100 Hz low frequency extension |
Features:
- Frequency Range: 9 kHz to 3 GHz
- ± 0.4 dB overall amplitude accuracy
- -166 dBm sensitivity, with internal preamp, +16 dBm TOI
- Rugged and portable for lab grade performance in the field
- One-millisecond RF sweep time, 45 measurements per second
- RMS, peak, neg peak, quasi-peak detetors
- 1 Hz digital-resolution bandwidth filter and preamplifier (optional)
- Variable sweep (trace points) from 2 to 8192
- Segmented sweep for up to 32 discontinuous spans in one sweep

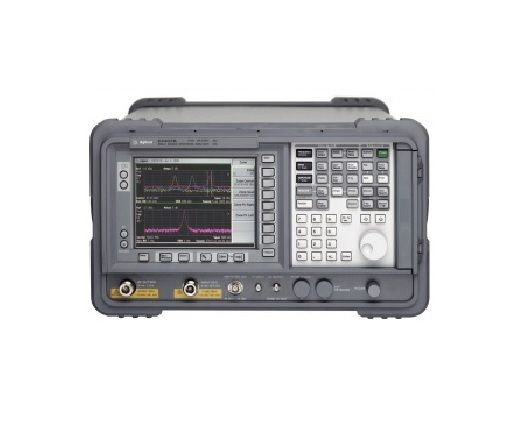

The Agilent E4402B`s flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required. The Agilent E4402B products» selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 3 GHz |
