Additional Features:
- Frequency range: 250 kHz-1 GHz
- Underrange: 100 kHz
- Resolution: 0.01 Hz
- Power requirements: 90 to 254 V, 50, 60, or 400 Hz, 200 W maximum
- Output Power: +13 to –136 dBm
- Flexible architecture, upgrade paths for options
- Choice of electronic or mechanical attenuator
- Superior level accuracy
- Wideband FM and Phase Modulation, AM and Pulse
- Step sweep (frequency, power and list)
- Built-in function generator

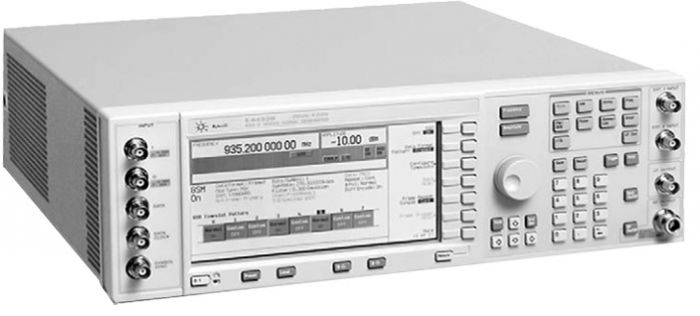

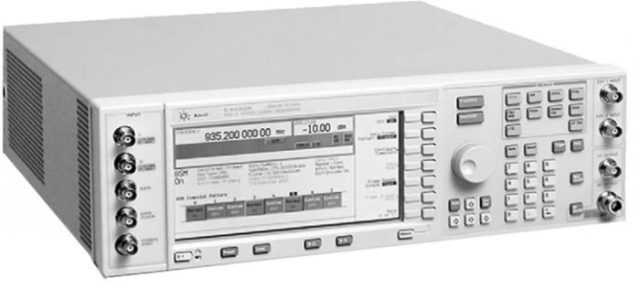

The Agilent E4400B offers excellent performance with superior quality, reliability and worldwide support. The Agilent E4400B is ideally suited to meet the demanding requirements of today»s receiver test, component test and local oscillator applications.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 1 GHz |
