Additional Features:
Output ratings (Simulator and Table Modes)
- Max Power: 480 W
- Voc Max: 130 V
- Isc Max: 4 A
Output ratings (for mixed mode)
- Max Power: 480 W
- V rated: 0-120 V
- I rated: 0-4 A
Programming Accuracy at 25°C ±5°C
- Voltage (Fixed Mode): 0.075% + 20 mV
- Current (Simulator and Fixed Mode): 0.2% + 10 mA

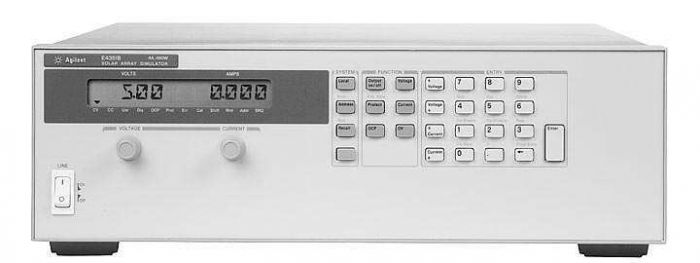

The Agilent E4351B one-box Solar Array Simulator (SAS) is a DC power source that simulates the output of a solar array. The E4351A is primary a current source with very low output capacitance and is capable of simulating the I-V curve of different arrays under different conditions (i.e., temperature, age, etc.). The I-V curve is programmable over the IEEE-488-2 bus and is conveniently generated within the SAS. Up to 60 volatile/non-volatile tables can be pre-programmed.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Current | 4 A |
| Voltage | 120 V |
| Power | 480 W |
