Product Information Features DYNARAY product family offers
- Up to 256 active channels
- Up to 4096 Focal Laws
- 16-bit amplitude resolution
- Dynamic Depth Focus (DDF)
- Position dependent focal law configurations
DYNARAY® Lite 64/64PR
- Up to 64 simultaneous active channels,
- Can use the same 64 channels as transmitters and receivers or 64 channels as transmitters and 64 others as receivers,
- 2 Hypertronics and 16 Lemo00 connectors.
DYNARAY® 64/64PR
- Up to 64 simultaneous active channels,
- Can use the same 64 channels as transmitters and receivers or 64 channels as transmitters and 64 others as receivers,
- 2 Hypertronics and 16 Lemo00 connectors.
DYNARAY® 64/256PR
- Up to 64 simultaneous active channels and 256 in total.
- Can use the same 64 channels as transmitters and receivers or 64 channels as transmitters and 64 others as receivers,
- 4 Hypertronics and 16 Lemo00 connectors.
DYNARAY® 128/128PR
- Up to 128 simultaneous active channels,
- Can use the same 128 channels as transmitters and receivers or 128 channels as transmitters and 128 others as receivers,
- 2 Hypertronics and 16 Lemo00 connectors.

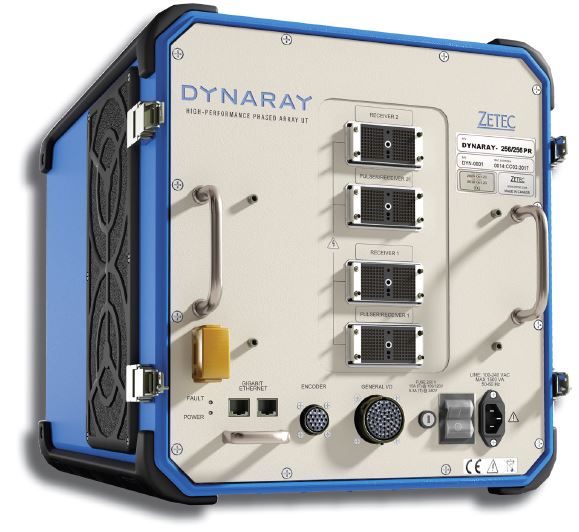

DYNARAY® 256/256PR
- Up to 256 simultaneous active channels,
- Can use the same 256 channels as transmitters and receivers or 256 channels as transmitters and
256 others as receivers, - 4 Hypertronics and 16 Lemo00 connectors.
Benefits
Capable of handling the most challenging inspection applications
- 2D matrix arrays
- Inspection requiring long sound paths
- Low-frequency probe operation
- Inspection through complex geometries
Delivers performance without compromise
- High data throughput, up to 20 MB/s
- 2-D Matrix Array Technology – Up to 256 simultaneously active elements and up to 512 channels in total
- Wide Range of Probe Frequencies – Drives low-frequency array probes (down to 0.5 MHz)
- Hypertronics connectors
- Flexible Inspection Setup – Up to 4,096 different focal laws with position dependent configuration for superior inspection quality on complex surfaces
- 3-D Work Environment – Controlled by UltraVision® Software, offering 3-D work environment for creation of components and data visualization
Configurations to meet your specific needs
- A range of configurations are available to meet your specific needs, from 64/64 (up to 64 simultaneous active channels) to 256/256 (up to 256 simultaneous active channels)
Software
The DYNARAY® systems are compatible with UltraVision 3 software.
