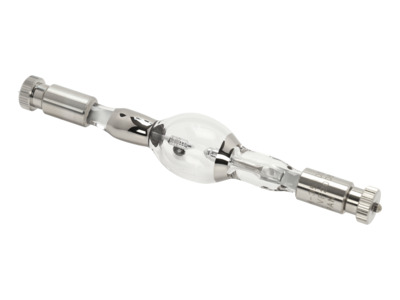

The 6286 Mercury Arc Lamp contains an exact measured amount of mercury and either argon gas or xenon which acts as a starter gas as the mercury vaporizes. This 350 Watt Hg lamp has a 0.8 x 2.7 mm effective arc size. Strong mercury lines through the visible and ultraviolet dominate the output spectrum of these lamps. A continuum in the infrared persists to 2.5 &mu,m and beyond.
Технические характеристики
- Type Mercury Arc Lamp
- Lamp Type Hg
- Lamp Wattage 350 W
- Average life 1000 h
- Bulb Diameter 20 mm
- Effective Arc Size 0.8 x 2.7 mm
- Horizontal Intensity 2100 cd
- Approximate Brightness 500 cd mm-2
- Approximate Flux 18000 lm
- Lamp Current 6 A
- Lamp Voltage 60 V
