Features
- 1 GHz — 6 GHz
- 4 analog channels
- Easily view and isolate signals on the 12.1-in capacitive multi-touch screen with Zone triggering and 450,000 wfms/s update rate
- Make more precise measurements with 115 Vrms noise floor at 1 mV/div (1 GHz)
- Get performance measurements anywhere with the portable 6-in deep size
- Quickly see analysis details with standard histogram and color grade
- View signal integrity with jitter and eye diagram analysis options
- Expand capabilities with full upgradability
Specifications
- Bandwidth: 1 GHz to 6 GHz
- Bandwidth Upgrades: Available
- Channels: 4
- Max Memory Depth: 4 Mpts
- Max Sample Rate: 20 GSa/s half channel, 10 GSa/s all channel
- Display Size: 12.1 inch capacitive touch
- Waveform Update Rate: 450,000 wfms/s
- ADC Bits: 8 bits
- Built-In Instruments (Optional): Digital Channels, 20 MHz Dual AWG, 3-digit DVM, 10-digit Counter
- Special Triggers: Touch Zone Trigger
- Protocol Trigger & Decodes: Optional
- Operating System: Embedded
- Real-Time: Yes

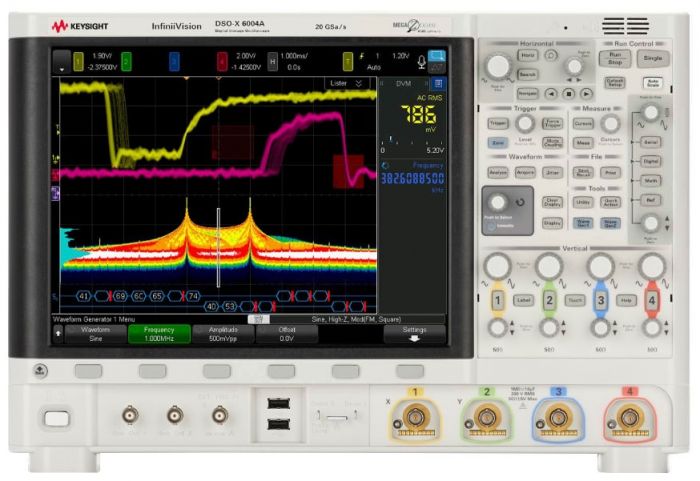

In the past, if you wanted an oscilloscope with exceptional performance, you could expect to pay a premium. Not anymore. The InfiniiVision 6000 X-Series oscilloscopes combine price and performance to set a new standard in the portable oscilloscope world. Imagine a 6.8-kg, 6-GHz bandwidth oscilloscope that sees and triggers on everything, helps you visualize complex waveforms and grows with your projects. The InfiniiVision 6000 X-Series oscilloscopes are designed for the most demanding engineers who want bandwidth, visualization power and the flexibility that comes with integrated capabilities — but with portability, a familiar embedded OS user interface, and an affordable price.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 6 GHz |
| Record Length | 4 MPts |
| Sampling Rate | 20 GS/s |
