| Advanced Math Analysis for Infiniivision Oscilloscopes |
| Memory Upgrade to 1 Mpts per channel |
| Remote Command Logging |
| Segmented Memory Acquisition |
Features:
- Bandwidth: 350 MHz
- Channels: 4
- Memory Depth: 4 Mpts
- Sample Rate: 5 GSa/s
- Update Rate: 1,000,000 waveforms/s
- Waveform math and FFT
- AutoProbe Interface
- USB host and device ports for connectivity, memory devices, and printing
Touch:
- 8.5-inch capacitive touch screen
- Designed for touch interface
Discover:
- Industry»s fastest uncompromised waveform update rate
- Exclusive zone touch trigger
Solve:
- Wide range of serial decodes
- 7-in-1 instrument integration
- Time/frequency domain correlation

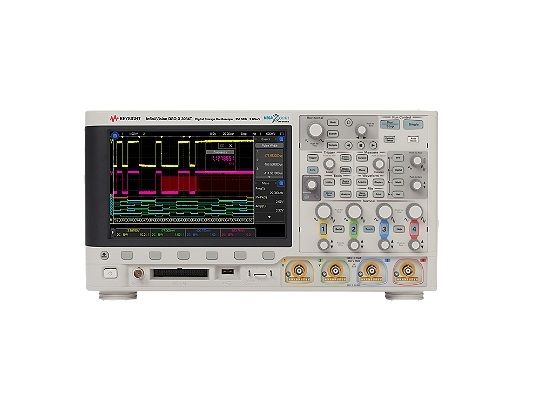

The DSOX3034T takes everything that was revolutionary about the A model and adds a capacitive touch screen, a user interface designed for touch, and the exclusive zone touch trigger, all combined with an industry-leading uncompromised update rate of 1 million wfm/s to give you the confidence that you»re seeing all of your signal detail, and the ability to discover any issues. And the addition of new analysis capabilities help you solve your hardest problems quickly.
The DSOX3034T once again redefines what you can expect in a general purpose oscilloscope by providing all of the performance and capability you need to get to measurement insights faster.
The image is a representation of selection. See specifications for product details.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 350 MHz |
| Record Length | 4 MPts |
| Sampling Rate | 5 GS/s |
