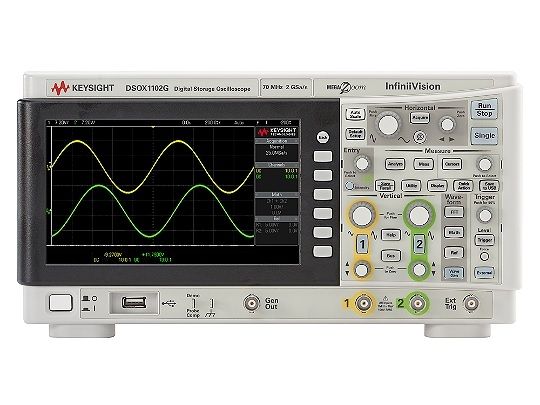

DSOX1102G Цифровой осциллограф Agilent Keysight HP

Features:

• Bandwidth: 70 MHz, with function generator
• Channels: 2
• Max Memory Depth: 1 Mpts
• Max Sample Rate: 2 GSa/s
• ADC Bits: 8 bits
• Power line consumption: 50 W max
• Power voltage range: 100 to 120 V, 50/60/400 Hz, 100 to 240 V, 50/60 Hz
• Environmental rating: 0 to +50 °C, 3,000 m Max
• Maximum Relative Humidity (non-condensing): 95%RH up to 40°C, decreases linearly to 45%RH at 50°C 9
• Remote Programming
• Real-Time
• Frequency Response Analysis (Bode gain & phase plots), included in models with WaveGen
• See more signal detail with 50,000 wfms/sec update rate
• Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise
• Test quickly and easily with a simple, intuitive user interface and built-in help and training signals
• Get professional-level functionality with industry-leading software analysis and 6-in-1 instrument integration

The DSOX1102G offers an integrated 20 MHz function generator with a signal modulation capability. It»s ideal for educational or design labs where bench space and budget are at a premium. The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test Add modulation to the signal with customizable AM, FM and FSK settings. No need to buy a separate function generator when you can get one integrated into your new oscilloscope.

Технические характеристики
