Features
- 6 GHz bandwidth (upgradable)
- 4 analog channels
- Achieve up to 16 bits of vertical resolution with our advanced system architecture
- Capture a longer signal trace with 20 GSa/s max sample rate and 100 Mpts/channel of standard memory
- Get superior signal integrity with an average system ENOB of 8.1 bits at full bandwidth
- Gain increased usability with the multi-touch supported 15 inch capacitive touch screen and solid state drive for fast boot and reliability
- Improve your testing with a wide range of protocol, compliance, and analysis software
Specifications
- Bandwidth: 6 GHz
- Channels: 4
- Max Memory Depth: 800 Mpts (2 channels), 400 Mpts (4 channels)
- Max Sample Rate: 20 GSa/s (2 channels), 10 GSa/s (4 channels)
- ADC Bits: 10 bits
- Maximum Vertical Resolution: 16 bits

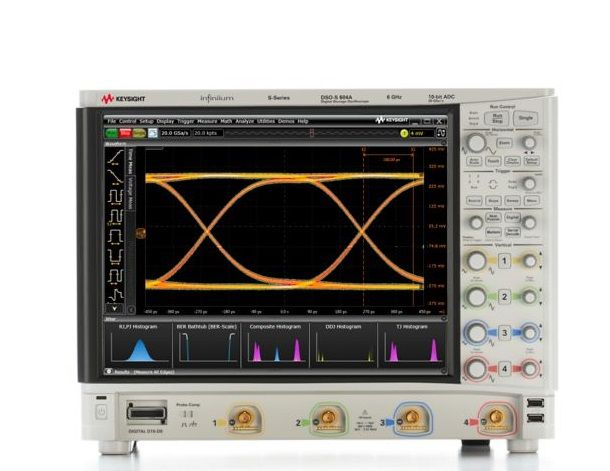

Whether you must debug your latest design or verify compliance, it is critical that your oscilloscope displays a true representation of your signal. This requires world-class signal integrity, and Infiniium S-Series oscilloscopes were designed with that in mind. The S-Series provides a superior time base, front-end, and ADC technology blocks. This gives you a platform with up to 16 bits of resolution, low noise, low jitter, and high ENOB – giving you visibility into the true performance of your device
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 6 GHz |
| Record Length | 800 MPts |
| Sampling Rate | 20 GS/s |
