Features:
- Bandwidth: 500 MHz with flat frequency response for high signal fidelity
- Channels: 4
- Max Memory Depth: 800 Mpts (2 channels), 400 Mpts (4 channels)
- Max Sample Rate: 20 GSa/s (2 channels), 10 GSa/s (4 channels)
- ADC Bits: 10 bits
- Maximum Vertical Resolution: 16 bits
- 10-bit analog-to-digital converter (ADC) for high vertical resolution
- 860 ps typical rise/fall time (10 to 90%)
- Low-noise front end with system ENOB >, 8
- 15” capacitive touch screen with multi-touch support
- Intel i5 motherboard with 8G RAM for fast processing
- Standard solid state drive for fast boot and high reliability
- USB 3.0 and Ethernet with offload speeds up to 200 MB/s
- Supports a wide variety of voltage, current, differential, single-ended, active, and passive probes
The Infiniium S-Series DSOS054A high-definition oscilloscopes incorporate new technology to deliver superior measurements. A 10-bit ADC, low-noise front end, correction filters, vertical scaling support down to 2 mV/division, and a precise time base produce high-fidelity measurements. In addition, its advanced frame and broad range of capability enable the S-Series oscilloscopes to tackle a wide range of test needs.

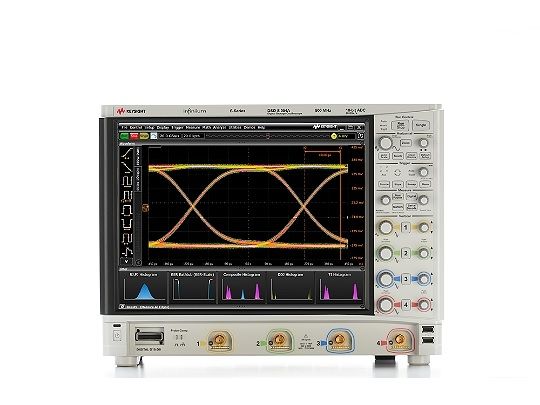

The image is for reference only. See product specification for details.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 500 MHz |
| Record Length | 800 MPts |
| Sampling Rate | 20 GS/s |
