| I²C/SPI triggering and decode |
| CAN, LIN and FlexRay triggering and decode |
| Standard Hard Drive — installed |
Features:
- Bandwidth: 600 MHz
- 4 Channels
- 10 GSa/s max. sample rate
- 40 Mpts per channel memory
- 3-in-1 instrument: oscilloscope, logic analyzer, and protocol analyzer
- Advanced Triggering
- 15” XGA display makes it easier to view analog, digital and serial signals
- Comprehensive built-in information system gives you fast answers to your questions. The task-oriented setup guide provides step-by-step instructions for several measurement procedures
- Touchscreen display comes standard for mouse-free operation
- Drag-and-drop measurements from the measurement bar provide an intuitive way to make a measurement on a particular cycle of your waveform
- See precise representation of your signal with 20 GSa/s maximum sample rate

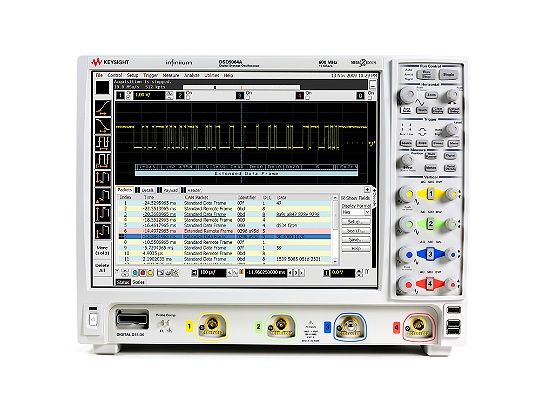

The Agilent Infiniium DSO9064A offers a bandwidth of 600 MHz, is equipped with a large 15” XGA LCD display, comes in a whisper-quiet package that is just 9” (23 cm) deep. High-performance scope channels ensure superior viewing of signals under test. The DSO9064A incorporates a powerful, feature-packed Infiniium oscilloscope with responsive deep memory.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 600 MHz |
| Record Length | 40 MPts |
| Sampling Rate | 10 GS/s |
