Features:
- 100 MHz bandwidth
- 2 analog channels
- 2 GSa/s sample rate
- Standard 8 Mpts MegaZoom III deep memory
- 12.1” XGA display with 256 intensity levels shows subtle signal detail
- Industry»s-fastest uncompromised update rate of up to 100,000 waveforms/sec displays infrequent events
- Segmented memory
- PC-based offline analysis and viewing of previously acquired data
- Power analysis
- Mask testing
Specifications:
- 100 Hz
- 4 Channel
- 2 GS/s
- 8 MPts

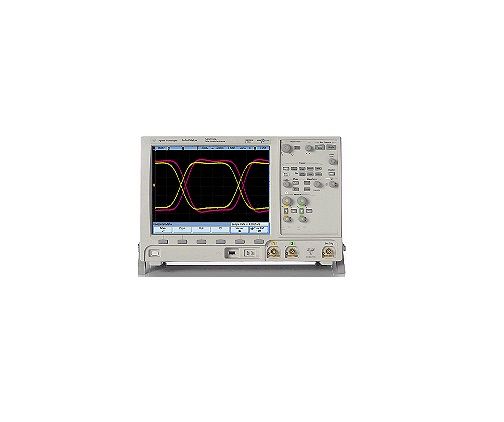

Keysight»s InfiniiVision DSO7012A, equipped with a 12.1” XGA display, comes in a quiet package that is just 6.5” deep, and weighs only 13 pounds. With the world»s fastest uncompromised update rate, up to 100,000 waveforms per second, see subtle signal detail and infrequent events other scopes miss. A wide range of application packages provide rapid measurement insight.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 100 Hz |
| Record Length | 8 MPts |
| Sampling Rate | 2 GS/s |
