| Oscilloscope-locked license |
| 8 Mpts memory upgrade |
Features:
- 100 MHz
- 4 analog channels
- Identify the most elusive problems with a 2 GSa/s sample rate
- Easily capture long signals while maintaining a high sample rate with up to 8 Mpts deep memory
- Find intermittent problems more quickly with 100,000 wfms/s waveform update rate
- View and debug FPGAs faster with tailored software
- Connect easily with standard USB, LAN, GPIB, XGA out, and LXI compliant connectivity
- Test in more locations with the only battery power option
Specifications:
- Bandwidth: 100 MHz
- Bandwidth Upgrades: Not Available
- Channels: 4
- Max Memory Depth: 8 Mpts
- Max Sample Rate: 2 GSa/s
- Display Size: 6.3 inch
- Waveform Update Rate: 100,000 wfms/s
- ADC Bits: 8 bits
- Built-In Instruments (Optional): Digital Channels
- Protocol Trigger & Decodes: Optional
- Operating System: Embedded
- Real-Time: Yes

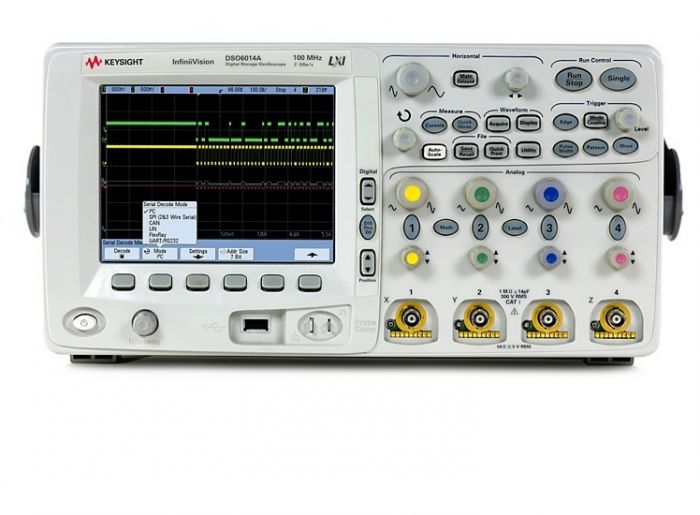

The DSO6014A is a 100 MHz, 4 Channel, 2 GS/s, 2 MPts digital oscilloscope from Agilent Keysight HP.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 100 MHz |
| Record Length | 2 MPts |
| Sampling Rate | 2 GS/s |
