| Advanced measurement kit |
| EMI Filter & Quasi-Peak Detector Kit |
| Near Field Probe Kit |
| Preampliier (PA) |
| S1210 EMI Pre-compliance |
| Real Time signal capture option for the spectrum analyzer. Enables 1.5 MHz of real time capture for signals like FSK. Works on the DSA700 series and the DSA815 or DSA815-TG |
| Ultra Spectrum Software for controlling and analyzing data from RIGOL spectrum analyzers |
| VSWR Measurement License Only (DSA800s with TG Only) |
Features:
- 1.5 GHz
- All-Digital IF Technology
- Min. -161 dBm Displayed Average Noise Level (Typ.)
- Min. <, -98 dBc/Hz @ 10 kHz Offset Phase Noise
- Level Measurement Uncertainty <, 0.8 dB
- 10 Hz Minimum Resolution Bandwidth
- Up to 7.5 GHz Tracking Generator (DSA8XX/E-TG)
- Advanced Measurement Functions (Opt.)
- EMI Filter & Quasi-Peak Detector Kit (Opt.)
- VSWR Measurement Kit (Opt.)
- PC Software (Opt.)
- Optional RF TX/RX Training Kit
- Optional RF Accessories (Cable, Adaptor, Attenuator, Bridge …)
- Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)
- 8 Inch WVGA (800×480) Display
- Compact Size, Light Weight Design
Accessories:
- Power cable

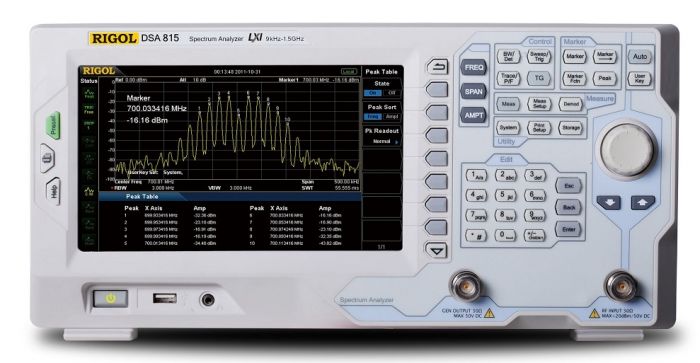

The Rigol DSA815-TG is a spectrum analyzer.
Технические характеристики
| Manufacturer | Rigol |
|---|---|
| Condition | New |
| Frequency | 1.5 GHz |
