Description

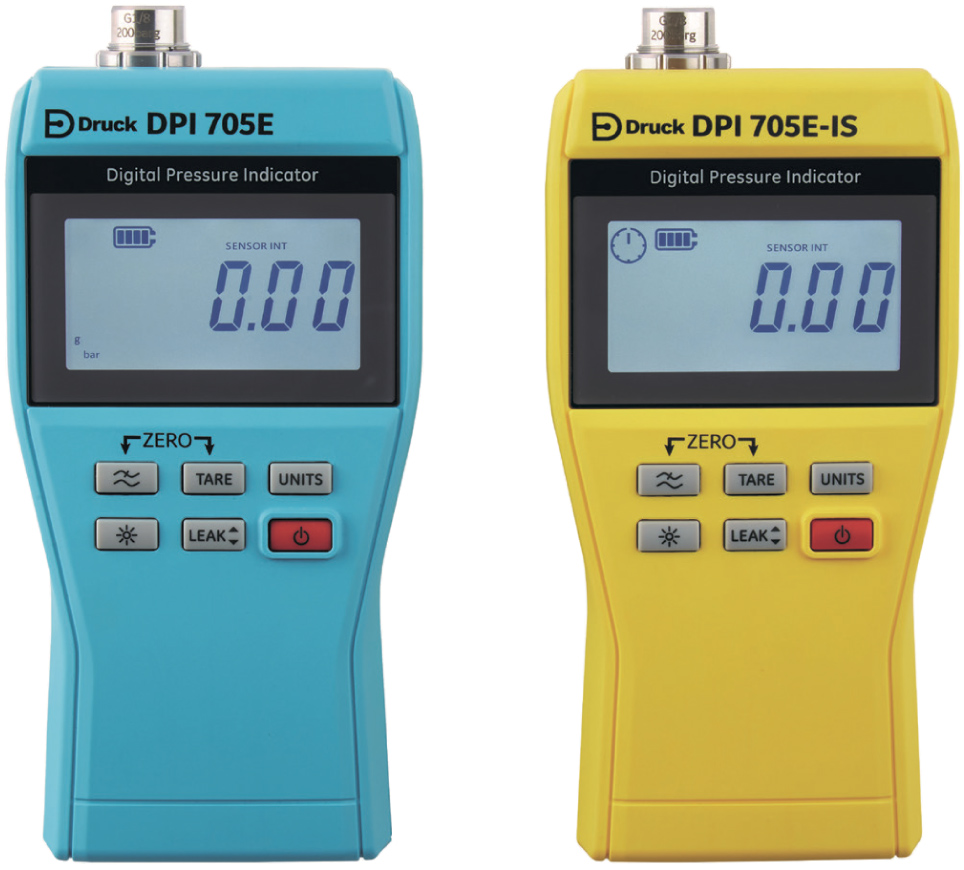

The Druck DPI 705E Pressure Indicator combine tough and rugged design with accurate and reliable measurements. The DPI 705E Series is designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting.
The 705E features 48 pressure ranges from ±1.69 psi to 20,000 psi (±25 mbar to 1,400 bar / 2.5 KPa to 140 MPa). The leak test is used to determine if there is a leak in the system by recording the pressure change over of time. The leak test can also be used with the RTD sensor to record a temperature change over time. It is user defined as 1, 3 or minute test.
Технические характеристики
Features
- ±1.69 psi to 20,000 psi pressure range
- 0.05% full scale accuracy
- Integral calibration record
- Leak test, tare, maximum/minimum and filter
- Hazardous Area (IS) version available
