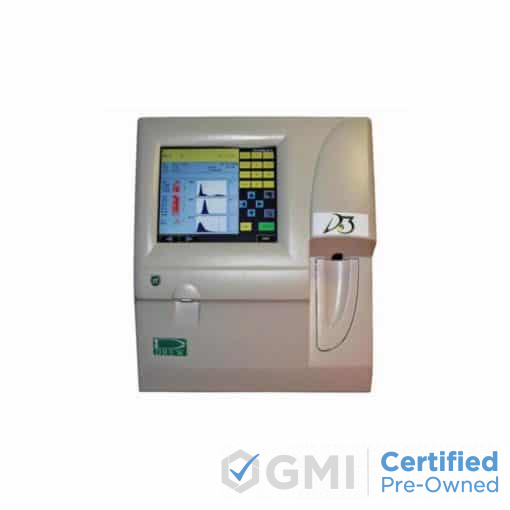

Product Description Large color LCD touch-screen for ease of use 16 parameters 60 samples per hour 10uL sample size (whole blood) + pre diluted mode User-friendly operator interface The Drew Scientific Drew3 Automatic Hematology System simple easy to use reliable affordable. Let us emphasize again: The Drew Scientific Drew3 Automatic Hematology System is unbelievably easy to use extremely reliable and you wont believe the value it will bring to your lab. Benefits you will enjoy: Throughput The instrument has a throughput of 60 samples per hour in direct sampling mode. How? Each test takes just 40 seconds! QC Six control levels 3 months each. Assay values can be entered via the keypad or loaded from a USB key. Automatic calculation of mean SD and CV% (possible to reject bad samples). Levy Jennings plot per level. It is possible to upload results to USB key for peer to peer analysis. Up to 1000 patient result storage. Sample Handling Patient ID Sample ID can be entered alpha-numerically. Blood samples must be collected into EDTA tubes. The Drew Scientific Drew3 Automatic Hematology System uses the following blood volumes: Direct mode: 10uL whole blood Predilution/Capillary: 25uL into 0.5ml of diluent using a built in diluent dispenser. Features Large color LCD touch-screen for ease of use 16 parameters 60 samples per hour 10uL sample size (whole blood) + pre diluted mode User-friendly operator interface Data management stores up to 1000 sample records and QC statistics User-interface with multi-language capability Low reagent consumption Specifications Display Color LCD touchscreen (640480) with backlight Barcode (option) Barcode Reader C39/Barcode/2 interleaved 5 Connections RS232C Ethernet (TCP/IP UDP/IP) Memory Capacity 1000 records (Demographics results and histograms) Electric Consumption In Cycle 30 VA (-30% + 10%) Standby 20 VA (-30% + 10%) Maximum 50 VA (-30% + 10%) General Operating Temperature 18 to 32C (64 to 90F) Relative Humidity 80% maximum at 32C (90F) Storage Temperature -10 to 50C (14 to 122F) Dimensions Height 13.99 in. Width 12.63 in. Depth 14.50 in. Weight 21 lbs
Технические характеристики
Specifications
| Display | |
| Color LCD touchscreen (640×480) with backlight | |
| Barcode (option) | |
| Barcode Reader C39/Barcode/2 interleaved 5 | |
| Connections | |
| RS232C Ethernet (TCP/IP UDP/IP) | |
| Memory Capacity | |
| 1000 records (Demographics results and histograms) | |
| Electric Consumption | |
| In Cycle | 30 VA (-30% + 10%) |
| Standby | 20 VA (-30% + 10%) |
| Maximum | 50 VA (-30% + 10%) |
| General | |
| Operating Temperature 18 to 32C (64 to 90F) | |
| Relative Humidity | |
| 80% maximum at 32C (90F) | |
| Storage Temperature | |
| -10 to 50C (14 to 122F) | |
| Dimensions | |
| Height | 13.99 in. |
| Width | 12.63 in. |
| Depth | 14.50 in. |
| Weight | |
| 21 lbs |
