| 80 M max, 20 M/channel |
| 250 M max, 50 M/channel |
| Advanced Event Search and Mark |
| DDR Memory Bus Analysis |
| Jitter and Eye Analysis Tools – Advanced (DPOJET) |
| DPOJET Jitter and Eye-Diagram Analysis Essentials |
| Advanced Jitter Analysis Software |
| Low-speed Automotive Serial Analysis, includes CAN Trigger, CAN/LIN Decode and Analysis |
| Limit Testing |
| Mask Testing for ITU-T, ANSI T1.102, Ethernet, SONET/SDH, Fibre Channel, USB 2.0, IEEE 1394b, Rapid I/O, OIF, CPRI, and Serial Video |
| Serial Pattern Trigger |
| USB 2.0 Serial Triggering and Analysis (LS, FS, HS) |
| TDSVNM CAN and LIN Timing and Protocol Decode (no CAN triggering included) |
Additional Features:
- Bandwidth: 3.5 GHz
- 4 Channel
- Sample Rate: 40 GS/s
- Record Length: 40Mpts
- >,250,000 wfms/s Maximum Waveform Capture Rate
- User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
- MyScope® Custom Windows and Right Mouse Click Menus for
Exceptional Efficiency - Event Search and Mark to Find Specific Events in the Entire Waveform
Applications:
- Signal Integrity, Jitter, and Timing Analysis
- Verification, Debug, and Characterization of Sophisticated Designs
- Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards
- Low-speed Serial Bus Design (I2C, SPI, RS-232, CAN, LIN, and Flexray)
- Investigation of Transient Phenomena
- Power Measurements and Analysis
- Spectral Analysis

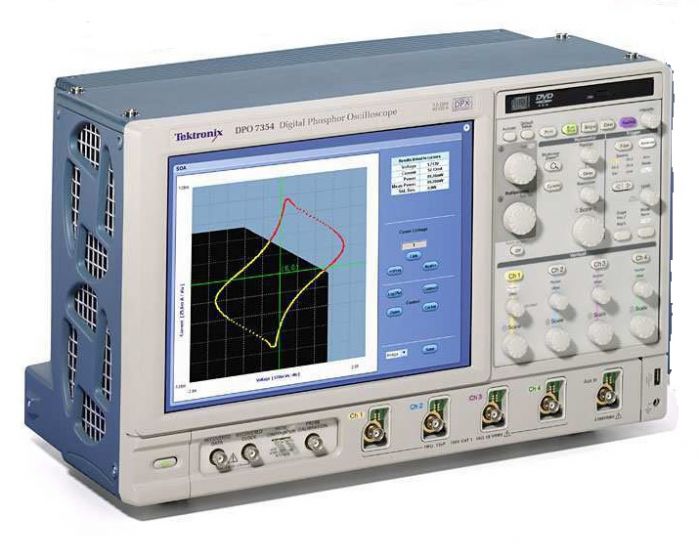

The DPO7354 is the new generation of real-time digital phosphor oscilloscopes and are the industry»s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic designs.
The DPO7354 oscilloscope includes as a standard feature a series of user-selectable bandwidth limit filters. These filters preserve the instrument»s bandwidth roll-off characteristics, flatness, and phase linearity within the new frequency range, thereby reducing the effects of out-of-band noise on measurements. Now, designers can purchase one instrument for their highest bandwidth needs and easily optimize it to handle lower-frequency measurements as well.
Технические характеристики
| Manufacturer | Tektronix |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 3.5 GHz |
| Record Length | 40 MPts |
| Sampling Rate | 40 GS/s |
