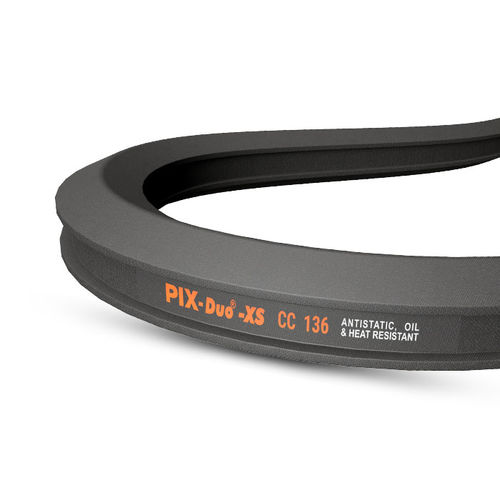

Hexagonal or Double V-Belts are recommended for serpentine drives, where power is to be transmitted from both the sides of the Belt. Double V-Belts are extremely flexible, they are widely used in agricultural machinery. They are meant for the application where sudden directional changes in the Belt travel occur, these changes exerts a unique stress on the structure of the Belt. PIX-Double V-Belts are perfectly designed and remain aligned both laterally and longitudinally, in the pulley groove, while operating. PIX Hexagonal or Double V-Belts are antistatic and oil resistant. Features — Enhanced product life — Transmits power from both the sides — Center cord provides excellent power transmission and low-stretch — Special design provides an excellent flexibility for serpentine drives — Temperature range: -18°C to +80°C Constructional Details 1.Wear resistant bias-cut neoprene rubberised polyester cotton fabric 2.High tenacity, low stretch tension member 3.High modulus compression rubber. Applications Rice mills, husker machines, serpentine drives, poultry feather-pickers, dyeing units, etc.
Технические характеристики
CharacteristicsTypeendless, square, V, hexagonalMaterialrubberProduct applicationsfor machinesSectorindustrialOther characteristicswrapped, double-sided, oil-resistant, heat-resistantLength
Min.: 1,168 mm (45.98 in)
Max.: 23,495 mm (925 in)
Width
13 mm, 17 mm, 22 mm, 25 mm (0.51 in)
Thickness
10 mm, 14 mm, 17 mm, 22 mm (0.39 in)
Temperature
Min.: -18 °C (-0.4 °F)
Max.: 80 °C (176 °F)
