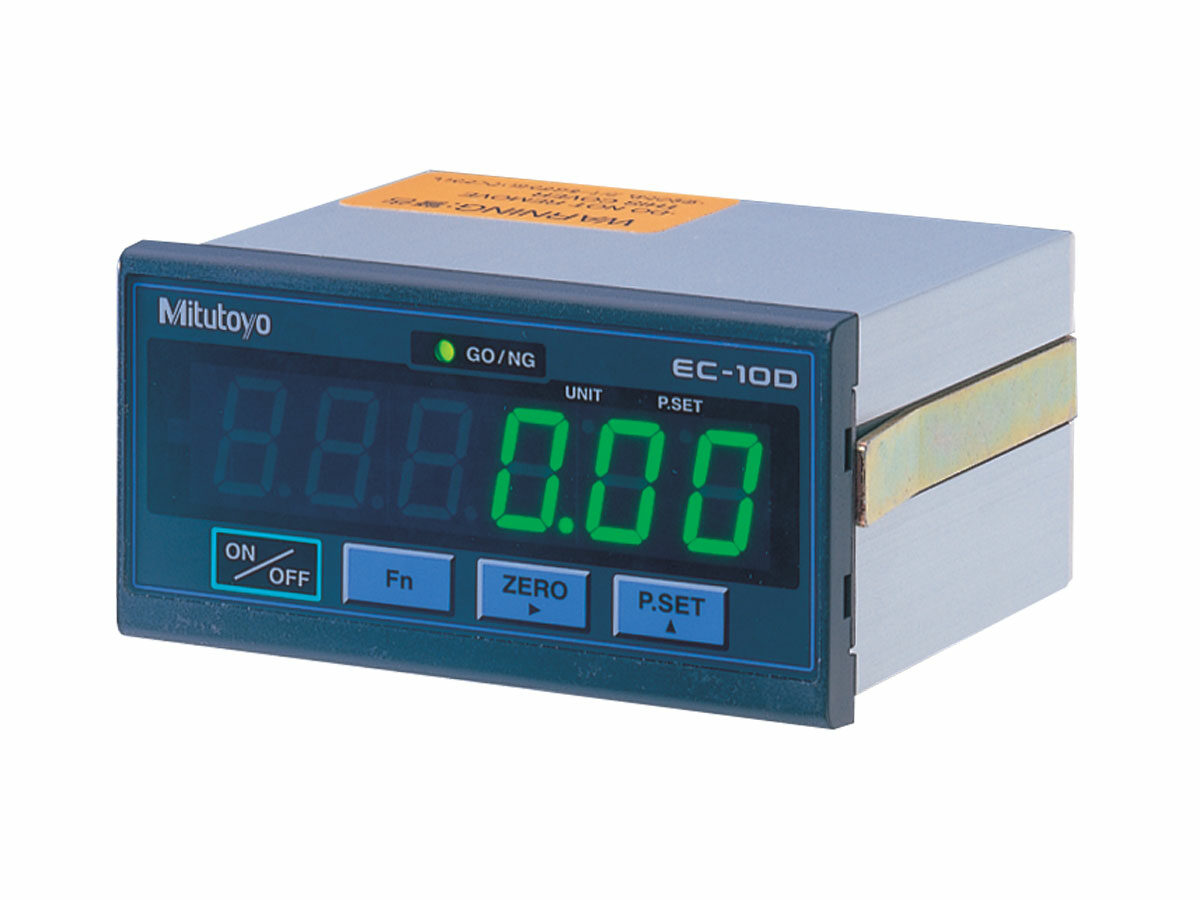

The Mitutoyo EC Counter is a single-function multi-point display unit that shows measurements and quick Go/no-go judgments from digital measuring instruments. The unit»s DIN size and mount-on-panel configuration incorporates better into a system. The large LED display is ideal for low-light situations or when the scale is not optimally positioned.
- Connects to LGD, LGS and all SPC output gages
- Functions: preset and Go/no-go judgment
- Output: 3-step limit signal, normal signal
- Display size is 6 LEDs
| Order No.: | Applicable gage: | Resolution: | Gage Capacity: | Display: | Function: | Output: | External Control: | Power Supply: | Dimensions: | Mass: | Requires SPC Cables: | Required Accessories: | |
|---|
| 542-007A | LGD, LGS, All SPC output gages | .0001, .00005, .001, .005″ / 0.001, 0.01mm | 1 | 6-digit LED | Preset, GO/NO-GO judgement | Open collector, 3-step limit signal, Normal signal | Preset, Data hold | AC Adapter | 96 x 48 x 84.6mm | 50g | Yes | |
