Дисковый микрометр с твердосплавным наконечником

Механический дисковый микрометр Mitutoyo предназначен для измерения длины касательной корня цилиндрических и косозубых шестерен в пределах +/- 0,0002 дюйма. Доступны в дюймовых и метрических единицах измерения.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

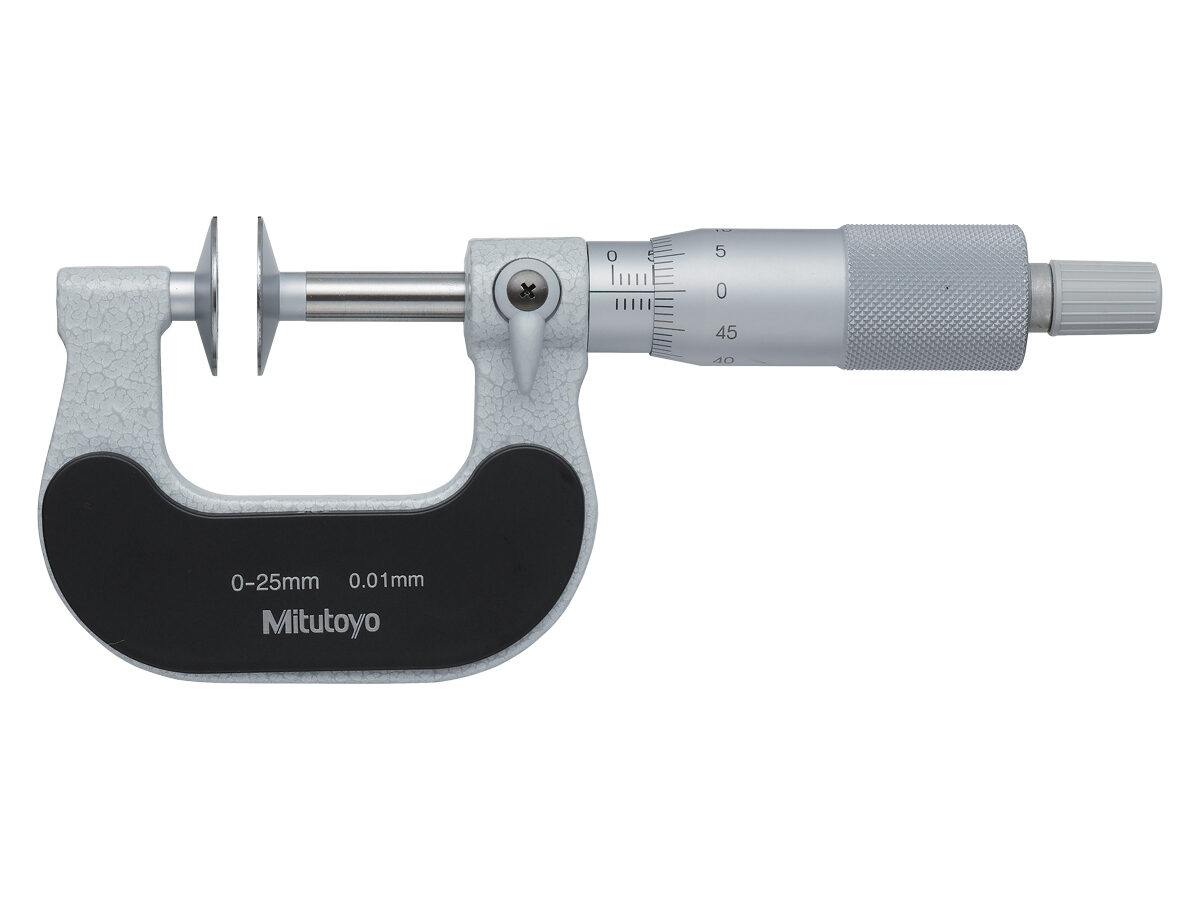

The Mitutoyo mechanical disc micrometer uses flat discs made with hardened steel in our own Japanese facilities to measure lengths of spur and helical gears. The flatness and thinness of the discs allow for reliable measurements in tight spaces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

Available in Metric and Inch models
Some metric models have measuring surfaces constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is performed with constant force
Knurled friction thimbles provide quick adjustments even when wearing gloves
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Supplied in fitted plastic case

Order No.:	Product Image:	Units:	Range:	Accuracy:	Mass:	Graduation:	Flatness:	Parallelism:	Disk Diameter:

Order No.:

123-101	—	Metric	0-25mm	±4µm	200g	0.01mm	1µm	4µm or less	20 ømm
123-102	—	Metric	25-50mm	±4µm	250g	0.01mm	1µm	4µm or less	20 ømm
123-103		Metric	50-75mm	±6µm	300g	0.01mm	1µm	6µm or less	20 ømm
123-104	—	Metric	75-100mm	±6µm	375g	0.01mm	1µm	6µm or less	20 ømm
123-105	—	Metric	100-125mm	±7µm	520g	0.01mm	1.6µm	7µm or less	30 ømm
123-106	—	Metric	125-150mm	±7µm	570g	0.01mm	1.6µm	7µm or less	30 ømm
123-107	—	Metric	150-175mm	±8µm	730g	0.01mm	1.6µm	8µm or less	30 ømm
123-108	—	Metric	175-200mm	±8µm	890g	0.01mm	1.6µm	8µm or less	30 ømm
123-109	—	Metric	200-225mm	±8µm	1000g	0.01mm	1.6µm	8µm or less	30 ømm
123-110	—	Metric	225-250mm	±9µm	1200g	0.01mm	1.6µm	9µm or less	30 ømm
123-111	—	Metric	250-275mm	±9µm	1410g	0.01mm	1.6µm	9µm or less	30 ømm
123-112	—	Metric	275-300mm	±9µm	1680g	0.01mm	1.6µm	9µm or less	30 ømm
123-113	—	Metric	0-25mm	±4µm	230g	0.01mm	1µm	4µm or less	20 ømm
123-114	—	Metric	25-50mm	±4µm	270g	0.01mm	1µm	4µm or less	20 ømm
123-115	—	Metric	50-75mm	±6µm	320g	0.01mm	1µm	6µm or less	20 ømm
123-116	—	Metric	75-100mm	±6µm	390g	0.01mm	1µm	6µm or less	20 ømm
123-125		Inch	0-1″	±0.0002″	200g	0.001″	—	0.00016″ or less	0.787 øinch
123-126	—	Inch	1-2″	±0.0002″	250g	0.001″	—	0.00016″ or less	0.787 øinch
123-127	—	Inch	2-3″	±0.0003″	300g	0.001″	—	0.00024″ or less	0.787 øinch
123-128	—	Inch	3-4″	±0.0003″	375g	0.001″	—	0.00024″ or less	0.787 øinch

123-101
123-102
123-103
123-104
123-105
123-106
123-107
123-108
123-109
123-110
123-111
123-112
123-113
123-114
123-115
123-116
123-125
123-126
123-127
123-128

Технические характеристики

Technology:	Mechanical
SPC Output:	No
Ratchet/Thimble:	Ratchet Stop
