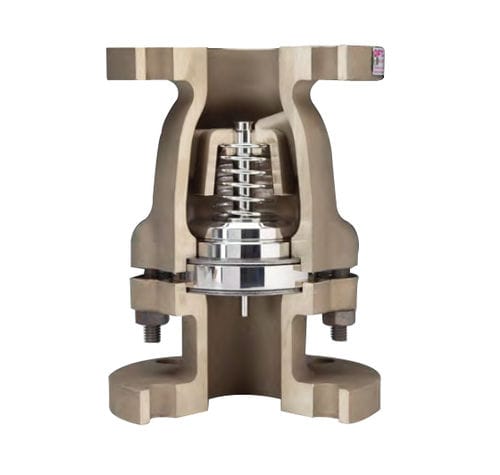

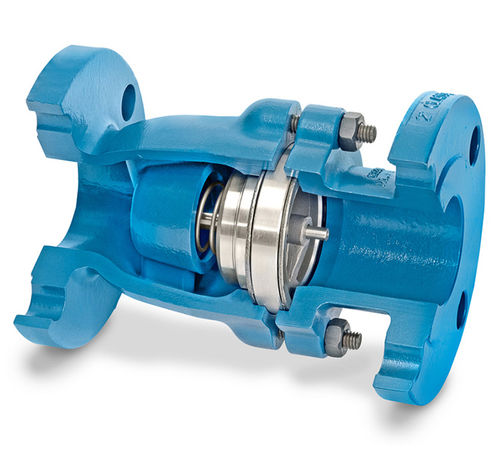

Excalibur® Flanged Check Valves The DFT® Excalibur® Silent Check Valve is a spring-assisted, center guided, in-line, check valve that provides reliable, low maintenance service for a wide range of fluids and pressure/temperature combinations. The valve consists of a body, gasket, seat, spring, disc with stem and guide bushing. Excalibur® check valves are available in a wide range of sizes and pressure ratings and in a variety of metals to meet most check valve requirements. Standard Features: ASME Class 150 to 1500 ASME B16.10 Face-to-Face Dimensions Standard Body Materials: A216 Grade WCB Carbon Steel A351 CF8M Stainless Steel Other Options Available Standard Ends are RF Flanged Optional Ends (4): Butt Weld, Flanged x Butt Weld, RTJ, Victaulic® Center-Guided / Dual-Guided Stem Two-Piece Body Horizontal or Vertical Installation
Технические характеристики
CharacteristicsTypediscBodyflangeOther characteristicsspring, in-line, standard, horizontal, silent, 2-pieceDN
Max.: 24 in
Min.: 2 in
