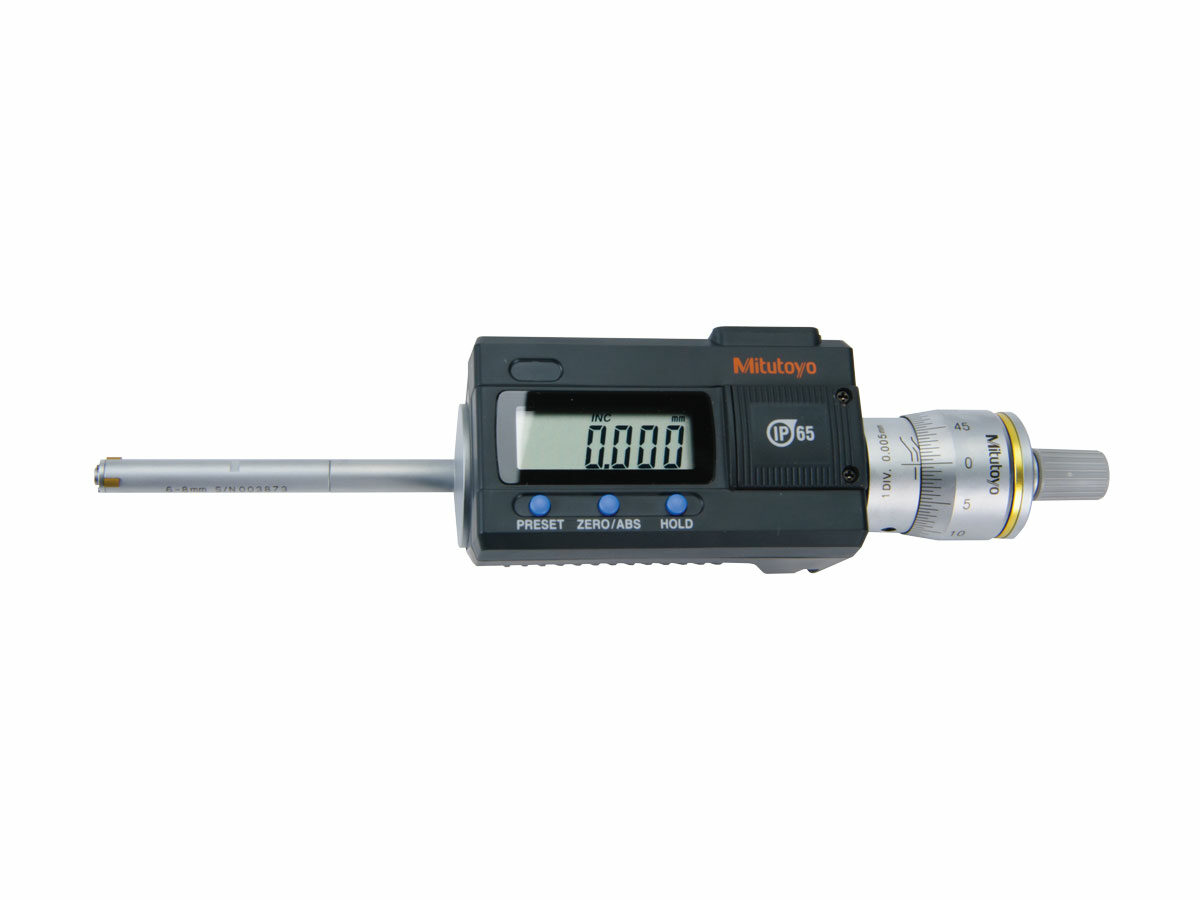

The Mitutoyo Digimatic Holtest digital internal micrometer features self-centering anvils evenly spaced at 120° with contact points coated in Titanium Nitride (TiN) to provide accurate, sensitive measurements that are highly durable. Precision-machined gears ensure reliable, repeatable measurements that are shown on a large, easy-to-read LCD display in an impact and water resistant housing. The holtest»s ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.
- Available in Metric and Inch/Metric models
- Optional extension rod allows for measuring deep holes
- SPC output function allows for quick and easy data management in real time
- Functions include Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error, Battery Replacement
- Scale on thimble and sleeve is laser etched for easier reading in all conditions
- IP65 protection permits use in environments exposed to cutting oil, dust, etc.*
- Holtests up to 100mm/4” diameter measurements supplied in a fitted plastic case
- Holtests over 100mm/4” diameter measurements supplied in a wooden case
*Anti-corrosion treatment is required after use
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Main Body Assembly: | Setting rings included: | Set/s: | Individual Range: | Mass: | Accessories: |
|---|
| Order No.: |
|---|
| 468-161 |  | Metric | 6 — 8mm | 0.001mm | ±2µm | 04AZB106 | — | — | — | 400g | — |
| 468-162 | — | Metric | 8 — 10mm | 0.001mm | ±2µm | 04AZB106 | — | — | — | 400g | — |
| 468-163 | — | Metric | 10 — 12mm | 0.001mm | ±2µm | 04AZB106 | — | — | — | 400g | — |
| 468-164 |  | Metric | 12 — 16mm | 0.001mm | ±3µm | 04AZB107 | — | — | — | 430g | — |
| 468-165 |  | Metric | 16 — 20mm | 0.001mm | ±3µm | 04AZB107 | — | — | — | 430g | — |
| 468-166 |  | Metric | 20 — 25mm | 0.001mm | ±3µm | 04AZB108 | — | — | — | 500g | — |
| 468-167 | — | Metric | 25 — 30mm | 0.001mm | ±3µm | 04AZB108 | — | — | — | 510g | — |
| 468-168 |  | Metric | 30 — 40mm | 0.001mm | ±3µm | 04AZB108 | — | — | — | 510g | — |
| 468-169 | — | Metric | 40 — 50mm | 0.001mm | ±3µm | 04AZB108 | — | — | — | 530g | — |
| 468-170 |  | Metric | 50 — 63mm | 0.001mm | ±3µm | 04AZB109 | — | — | — | 650g | — |
| 468-171 | — | Metric | 62 — 75mm | 0.001mm | ±4µm | 04AZB109 | — | — | — | 660g | — |
| 468-172 | — | Metric | 75 — 88mm | 0.001mm | ±4µm | 04AZB109 | — | — | — | 990g | — |
| 468-173 | — | Metric | 87 — 100mm | 0.001mm | ±4µm | 04AZB109 | — | — | — | 1000g | — |
| 468-174 |  | Metric | 100 — 125mm | 0.001mm | ±5µm | 04AZB110 | — | — | — | 970g | — |
| 468-175 | — | Metric | 125 — 150mm | 0.001mm | ±5µm | 04AZB110 | — | — | — | 1060g | — |
| 468-176 | — | Metric | 150 — 175mm | 0.001mm | ±5µm | 04AZB110 | — | — | — | 1150g | — |
| 468-177 | — | Metric | 175 — 200mm | 0.001mm | ±5µm | 04AZB110 | — | — | — | 1240g | — |
| 468-178 |  | Metric | 200 — 225mm | 0.001mm | ±6µm | 04AZB110 | — | — | — | 1330g | — |
| 468-179 | — | Metric | 225 — 250mm | 0.001mm | ±6µm | 04AZB110 | — | — | — | 1420g | — |
| 468-180 | — | Metric | 250 — 275mm | 0.001mm | ±6µm | 04AZB110 | — | — | — | 1510g | — |
| 468-181 | — | Metric | 275 — 300mm | 0.001mm | ±6µm | 04AZB110 | — | — | — | 1600g | — |
| 468-261 |  | Inch | 6.925 — 8.89mm / 0.275-0.35″ | 0.001mm / 0.00005″ | ±2µm / ±0.0001″ | 04AZB111 | — | — | — | 400g | — |
| 468-262 | — | Inch | 8.89 — 10.795mm / 0.35-0.425″ | 0.001mm / 0.00005″ | ±2µm / ±0.0001″ | 04AZB111 | — | — | — | 400g | — |
| 468-263 |  | Inch | 10.795 — 12.7mm / 0.425-0.5″ | 0.001mm / 0.00005″ | ±2µm / ±0.0001″ | 04AZB111 | — | — | — | 400g | — |
| 468-264 |  | Inch | 12.7 — 16.51mm / 0.5-0.65″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | 04AZB112 | — | — | — | 430g | — |
| 468-265 |  | Inch | 16.51 — 20.32mm / 0.65-0.8″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | 04AZB112 | — | — | — | 430g | — |
| 468-266 | — | Inch | 20.32 — 25.4mm / 0.8-1″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | 04AZB113 | — | — | — | 500g | — |
| 468-267 | — | Inch | 25.4 — 30.48mm / 1-1.2″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | 04AZB113 | — | — | — | 510g | — |
| 468-268 |  | Inch | 30.48 — 40.64mm / 1.2-1.6″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | 04AZB113 | — | — | — | 510g | — |
| 468-269 | — | Inch | 40.64 — 50.8mm / 1.6-2″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | 04AZB113 | — | — | — | 530g | — |
| 468-270 |  | Inch | 50.8 — 63.5mm / 2.0-2.5″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | 04AZB114 | — | — | — | 650g | — |
| 468-271 | — | Inch | 63.5 — 76.2mm / 2.5-3″ | 0.001mm / 0.00005″ | ±4µm / ±0.0002″ | 04AZB114 | — | — | — | 660g | — |
| 468-272 | — | Inch | 76.2 — 88.9mm / 3-3.5″ | 0.001mm / 0.00005″ | ±4µm / ±0.0002″ | 04AZB114 | — | — | — | 990g | — |
| 468-273 |  | Inch | 88.9 — 101.6mm / 3.5-4″ | 0.001mm / 0.00005″ | ±4µm / ±0.0002″ | 04AZB114 | — | — | — | 1000g | — |
| 468-274 |  | Inch | 101.6 — 127mm / 4-5″ | 0.001mm / 0.0001″ | ±5µm / ±0.00025″ | 04AZB115 | — | — | — | 970g | — |
| 468-275 | — | Inch | 127 — 152.4mm / 5-6″ | 0.001mm / 0.0001″ | ±5µm / ±0.00025″ | 04AZB115 | — | — | — | 1060g | — |
| 468-276 | — | Inch | 152.4 — 177.8mm / 6-7″ | 0.001mm / 0.0001″ | ±5µm / ±0.00025″ | 04AZB115 | — | — | — | 1150g | — |
| 468-277 |  | Inch | 177.8 — 203.2mm / 7-8″ | 0.001mm / 0.0001″ | ±5µm / ±0.00025″ | 04AZB115 | — | — | — | 1240g | — |
| 468-278 | — | Inch | 203.2 — 228.6mm / 8-9″ | 0.001mm / 0.0001″ | ±6µm / ±0.0003″ | 04AZB115 | — | — | — | 1330g | — |
| 468-279 | — | Inch | 228.6 — 254mm / 9-10″ | 0.001mm / 0.0001″ | ±6µm / ±0.0003″ | 04AZB115 | — | — | — | 1420g | — |
| 468-280 | — | Inch | 254 — 279.4mm / 10-11″ | 0.001mm / 0.0001″ | ±6µm / ±0.0003″ | 04AZB115 | — | — | — | 1510g | — |
| 468-281 |  | Inch | 279.4 — 304.8mm / 11-12″ | 0.001mm / 0.0001″ | ±6µm / ±0.0003″ | 04AZB115 | — | — | — | 1600g | — |
| 468-981 | — | Metric | 6 — 12mm | 0.001mm | ±2µm | — | 10 | — | 10-12mm | — | — |
| 468-982 |  | Metric | 12 — 25mm | 0.001mm | ±3µm | — | 20 | — | 20-25mm | — | — |
| 468-983 |  | Metric | 25 — 50mm | 0.001mm | ±3µm | — | 30 | — | 40-50mm | — | — |
| 468-984 |  | Metric | 50 — 75mm | 0.001mm | ±4µm | — | 62 | — | 62-75mm | — | — |
| 468-985 | — | Metric | 75 — 100mm | 0.001mm | ±4µm | — | 87 | — | 87-100mm | — | — |
| 468-986 | — | Inch | 6.925 — 12.7mm / 0.275-0.5″ | 0.001mm / 0.00005″ | ±2µm / ±0.0001″ | — | .425 | — | .425-.5″ | — | — |
| 468-987 |  | Inch | 12.7 — 25.4mm / 0.5-1″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | — | .8 | — | .8-1″ | — | — |
| 468-988 |  | Inch | 25.4 — 50.8mm / 1-2″ | 0.001mm / 0.00005″ | ±3µm / ±0.00015″ | — | 1.2 | — | 1.6-2″ | — | — |
| 468-989 |  | Inch | 50.8 — 76.2mm / 2-3″ | 0.001mm / 0.00005″ | ±4µm / ±0.0002″ | — | 2.5 | — | 2.5-3″ | — | — |
| 468-990 | — | Inch | 76.2 — 101.6mm / 3-4″ | 0.001mm / 0.00005″ | ±4µm / ±0.0002″ | — | 3.5 | — | 3.5-4″ | — | — |
| 468-161 | |
| 468-162 | |
| 468-163 | |
| 468-164 | |
| 468-165 | |
| 468-166 | |
| 468-167 | |
| 468-168 | |
| 468-169 | |
| 468-170 | |
| 468-171 | |
| 468-172 | |
| 468-173 | |
| 468-174 | |
| 468-175 | |
| 468-176 | |
| 468-177 | |
| 468-178 | |
| 468-179 | |
| 468-180 | |
| 468-181 | |
| 468-261 | |
| 468-262 | |
| 468-263 | |
| 468-264 | |
| 468-265 | |
| 468-266 | |
| 468-267 | |
| 468-268 | |
| 468-269 | |
| 468-270 | |
| 468-271 | |
| 468-272 |
| Technology: | Digimatic |
|---|---|
| Contact Point: | TiN coating |
| Measuring Method: | Three-point method |
| Display: | LCD |
| Battery: | SR44 (2 pcs.) 938882 |
| Battery Life: | Approx. 1.2 years under normal use |
| Ratchet/Thimble: | Ratchet Stop |
| IP Rating: | IP65 |
| SPC Output: | Yes |
Digimatic Holtest-трехточечный внутренний — товар из ассортимента Laserzz для подбора и поставки под задачи ремонта и комплектации.
Позиция подходит для сценариев замены и закупки под конкретную спецификацию оборудования.
Для корректного выбора сверяйте маркировку, параметры и совместимость с вашей схемой/узлом.
