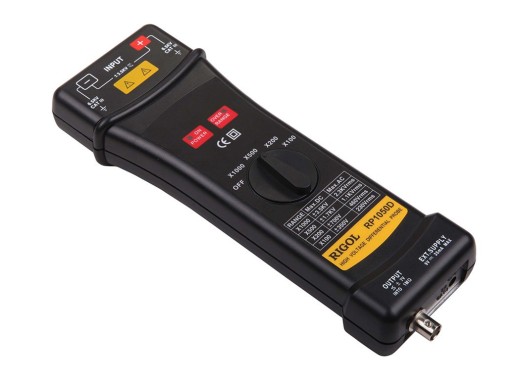

With this probe it is possible to convert a differential input voltage of up to 7000 Vpp to a low voltage signal so that the waveform can be analyzed with an oscilloscope. The frequency range of this probe is 0-50 MHz which makes it very suitable for large electricity tests and R&D.
The RP1050D is suitable for all universal oscilloscopes. Furthermore, the labeled attenuation ratios are applicable when the input impedance of the oscilloscope is 1 M . These attenuation ratios will be doubled when the input impedance of the oscilloscope is 50 .
Specifications Max. Differential input voltage 7000 V Input voltage range 700Vpp (100x att.)
1400Vpp (200x att.)
3500Vpp (500x att.)
7000Vpp (1000x att.) Output voltage 7V Attenuation ratios 100x, 200x, 500x, 1000x Bandwidth DC-50MHz (200x, 500x, 1000x)
DC-25 MHz (100x) Power supply 9 V (0.4W) For more information you can find the user guide at the bottom of this page.
