This probe has a remarkable price-performance ratio, unlike any other one that we sell. A bandwidth of 100 MHz and a measurement range up to 1300 V. Variable attenuation finishes the package.
With the specs that this probe offers it allows for a broad usage. This combined with a low price makes the probe unparalleled in the competition.

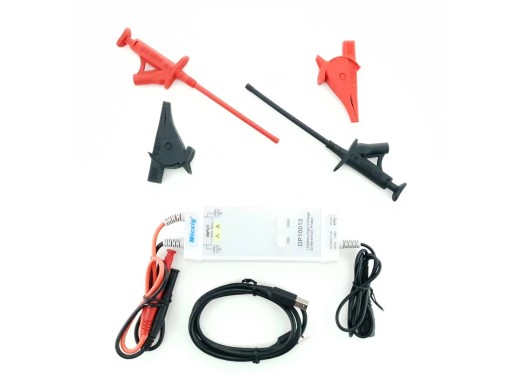

The probe is supplied through an USB connection, which makes it more portable, as almost all scopes offer an external USB port. This makes a separate power brick unnecessary. A broad collection of clamps and clips are supplied for measurements.
Model overview Model DP10007 DP10013 DP20003 DP750-100 Max voltage ±700 V at 100:1 mode±1300 V at 500:1 mode±5600 V at 2000:1 mode±750 V at 500:1 mode Attenuation 10:1, 100:150:1, 500:1200:1, 2000:150:1, 500:1 Bandwidth100 MHz100 MHz100 MHz100 MHz Price 166.12 €166.12 Excl. VAT 166.12 €166.12 Excl. VAT 234.71 €234.71 Excl. VAT 176.03 €176.03 Excl. VAT Specifications Bandwidth 100 MHz Channel 1 Rise time 3.5 ns Attenuation 50x , 500x Total range (DC+ACpk-pk) 50x: 130V 500x: 1300 V Max input voltage (compared to gnd) 1000 V, CAT II CMRR > 80 dB (DC)> 60 dB (100 kHz) >50 dB (1 MHz) Output voltage &le, 3V Supply USB 5 V, 0.85 Watt Cable lengths Input: 60 cmOutput: 90 cm Dimensions 145 x 60 x 27 mm
