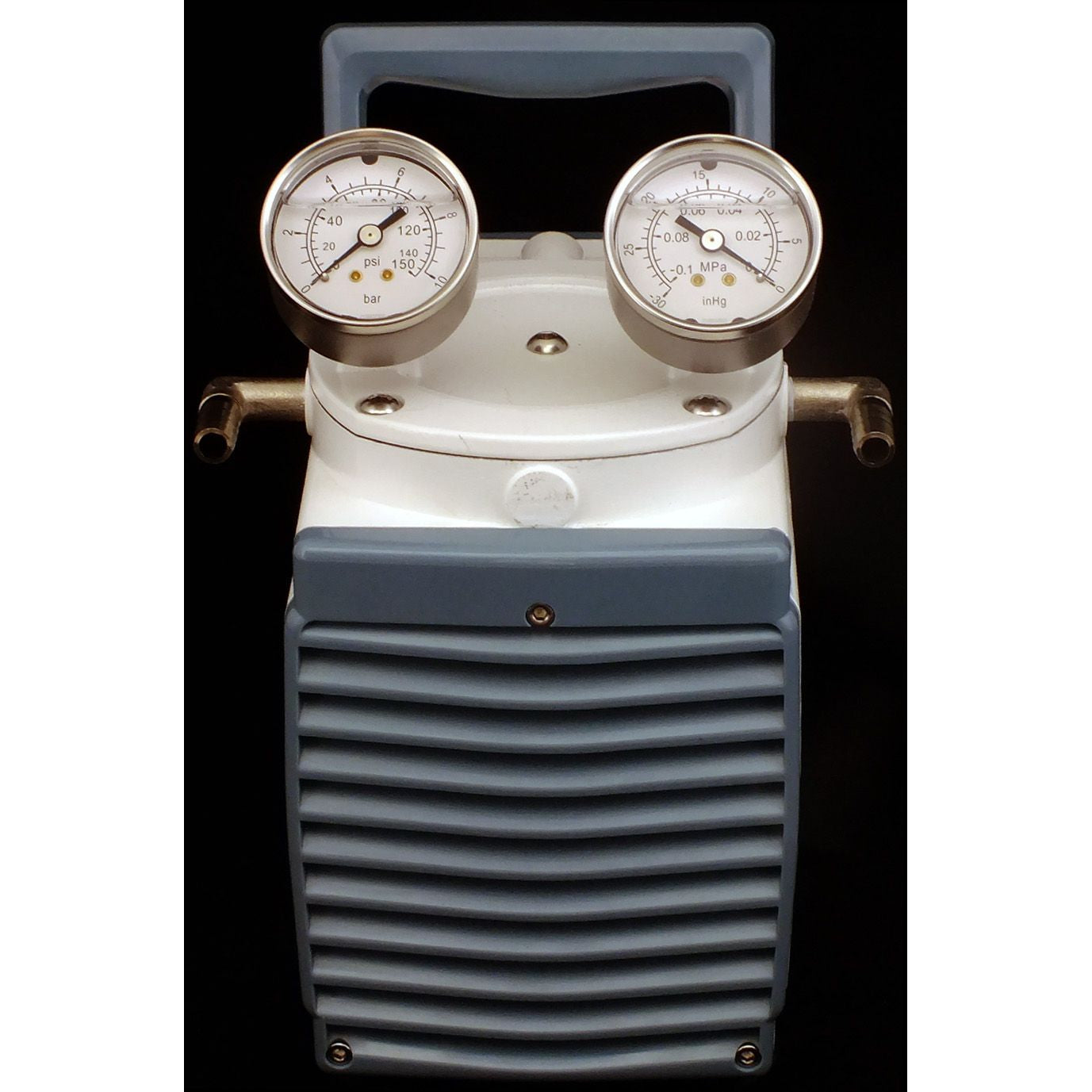

Diaphragm vacuum pump 230V

Sign up today and we’ll send you a 10% discount code towards your first purchase. Some restrictions apply.

Features

• Oil-free pump with a built-in filter for clean exhaust air.
• Automatic cooling exhaust system ensures continuous operation.
• Adjustable design provides control of vacuum and pressure.
• PTFE surface for anti-corrosive models.
• Blue colour-scheme for standard models, orange colour-scheme for anti-corrosive vacuum pumps.

**This series of diaphragm vacuum pumps has CE approval**

Using a HNBR head, pumped gases may be between -40°C and 165°C.
Nylon softens well before its melting point and may be used between -40°C and 99°C.
When pumping high temperature gases, use a SS flexible pipe on the suction side and cool that with water.

Cat. No. VF4-01 VF4-02 VF4-04 VF4-05 VF4-06 Ultimate Pressure &gt,0.075Mpa
/250mbar
&gt,0.08Mpa
/200mbar
&gt,0.08Mpa
/200mbar
&gt,0.095Mpa
/50mbar
&gt,0.08Mpa
/200mbar
&gt,30psi

Speed of Evacuation (L/Min) 12 20 30 30 60 Pressure Type Dual — Positive, Negative Negative Dual — Positive, Negative Negative Dual — Positive, Negative Pump Heads 1 1 1 2 2 Pump Head Material NBR

NBR NBR NBR NBR Air Changing Bin / Gas Chamber Teflon Coated Teflon Coated Teflon Coated Teflon Coated Inlet/Outlet (mm) Ø6 Ø6 (Silencer) Ø6 Ø6 (Silencer) Ø6 (Silencer) Working Temp. &lt,55 &lt,55 &lt,55 &lt,55 &lt,55 Temperature of working environment (°C) 7-40 7-40 7-40 7-40 7-40 Power of electrical engine (W) 75 160 160 160 160 Voltage 230V, 50Hz 230V, 50Hz 230V, 50Hz 230V, 50Hz 230V, 50Hz Noise Level (DB) &lt,60 &lt,50 &lt,60 &lt,60 &lt,50 Weight (kg) 4.5 7.5 7.6

11 11

Overall Size (LxWxH mm) 195 x 98 x 156 215 x 120 x 235 210 x 160 x 235 300 x 120 x 235 300 x 160 x 235

Catalogue numbers with the ‘A’ suffix are the anti-corrosive versions.
