Диаметр отверстия Gage-Standard-8 мм с индикатором

Нутромеры Mitutoyo стандартного типа оснащены сменными пятками и прокладками для высокоточного измерения диаметра скважин широкого диапазона размеров.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

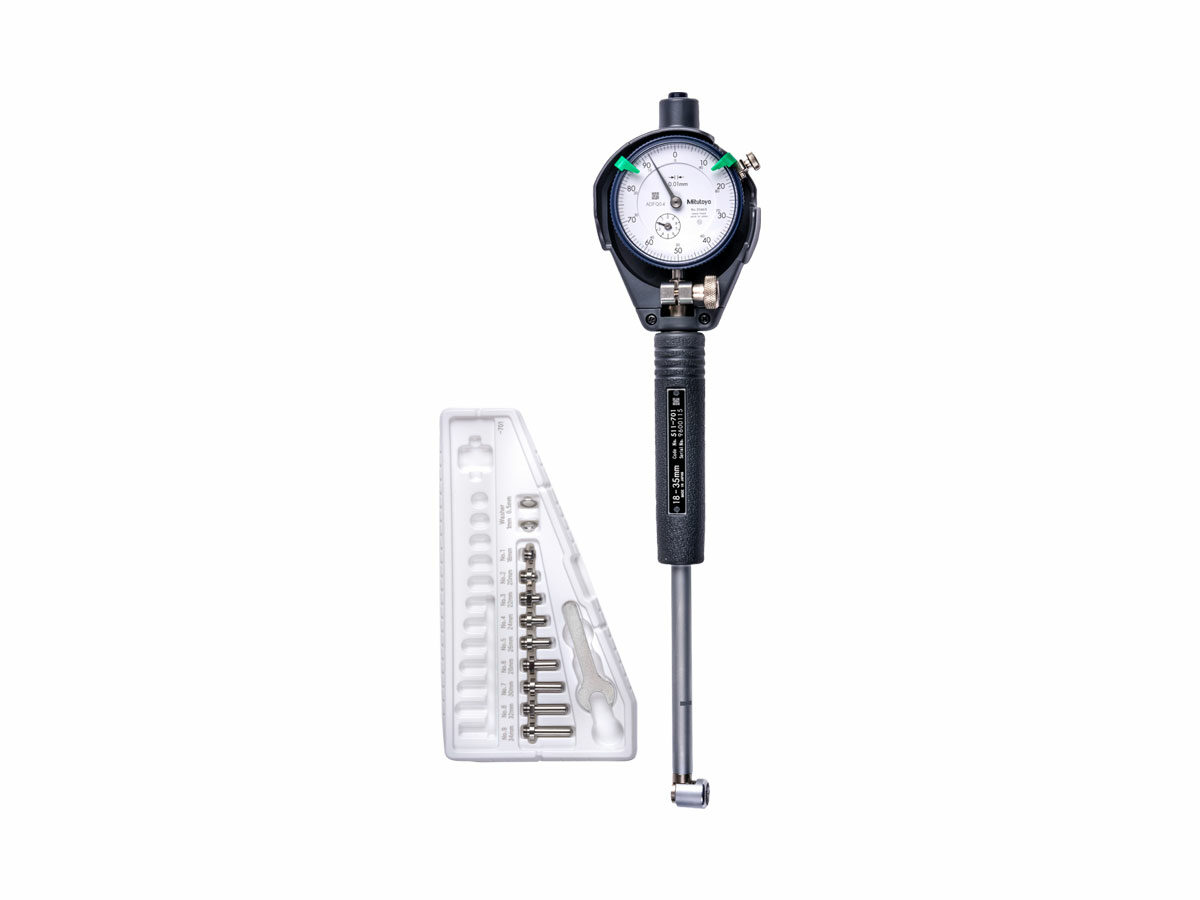

The Mitutoyo standard type bore gage is available in measuring ranges from 18mm-150mm to measure inside bore diameters with accuracy to 2µm. The bore gage comes with interchangeable anvils to measure different bore diameters with the same gage. A pendulum guide structure improves the slide of the gage for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.

Includes a Mitutoyo Dial Indicator
Available in Metric models
Optional extension rods are available to measuring deep hole with accuracy
Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
Models with dial indicators are fully protected by a rugged cover
Gage stem diameter is 8mm
Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
Supplied in a fitted plastic case

Order No.:	Product Image:	Range:	Graduation:	Dial Gage:	Number of anvils:	Number of spacers:

Order No.:

511-711-20	—	18 — 35mm	0.01mm	2046AB	9	2
511-712-20	—	35 — 60mm	0.01mm	2046AB	6	4
511-713-20	—	50 — 150mm	0.01mm	2046AB	11 (50mm Sub Anvil)	4
511-714-20	—	100 — 160mm	0.01mm	2046AB	13	4
511-715-20	—	160 — 250mm	0.01mm	2046AB	6	7
511-716-20	—	250 — 400mm	0.01mm	2046AB	5 (75mm Sub Anvil)	7
511-721-20	—	18 — 35mm	0.001mm	2109AB-10	9	2
511-722-20	—	35 — 60mm	0.001mm	2109AB-10	6	4
511-723-20	—	50 — 150mm	0.001mm	2109AB-10	11 (50mm Sub Anvil)	4
511-724-20	—	100 — 160mm	0.001mm	2109AB-10	13	4
511-725-20	—	160 — 250mm	0.001mm	2109AB-10	6	7
511-726-20	—	250 — 400mm	0.001mm	2109AB-10	5 (75mm Sub Anvil)	7

511-711-20
511-712-20
511-713-20
511-714-20
511-715-20
511-716-20
511-721-20
511-722-20
511-723-20
511-724-20
511-725-20
511-726-20

Технические характеристики

Technology:	Mechanical
Contact Point:	Carbide Tipped
Units:	Metric
Accuracy:	+/-2µm
Repeatability:	0.5µm
Adjacent Error:	1µm
Stem Diameter:	8mm
With Dial Gage Protective Cover (21DZA000):	Yes
