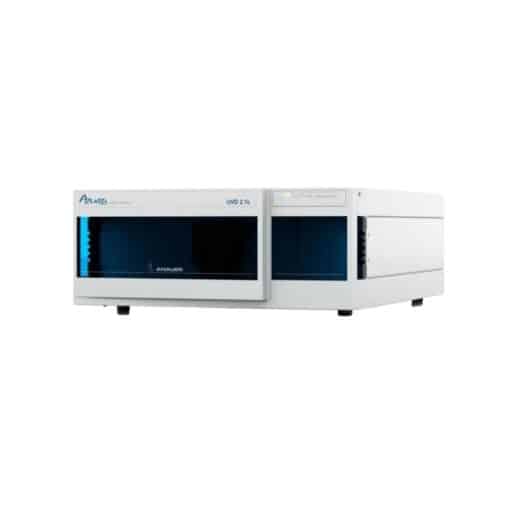

Детектор AZURA UV/VIS UVD 2.1L

Product Description Superior Single Wavelength UV-Detector for Liquid Chromatography and Process Technology 190 750 nm, variable single wavelength UV/VIS detector The AZURA UV/VIS Detector UVD 2.1L is a competitively priced HPLC spectrophotometer for routine HPLC applications including fast LC methods. Besides offering excellent technical specifications, this robust detector features a highly flexible and compact design. The UVD 2.1L comes with an installed deuterium lamp which covers a wavelength range from 190 to 750 nm. This detector can be controlled with OpenLab EZChrom, ChromGate, and ClarityChrom software, as well as with the Mobile Control software (stand-alone operation), via LAN or through analog input/output, allowing it to be integrated into almost any LC system. Due to a smart design the flow cell is easily accessible and can be changed very quickly. You can choose between a wide range of flow cells for analytical or preparative LC applications with flow rates from 10 &mu,l/min up to 10 l/min. Large choice of flow cells Leak management 59 years experience Made in Germany Detection Detector type Variable single wavelength UV detector Detection channels 1 Light source Deuterium (D) lamp with integrated GLP chip Wavelength range 190 750 nm Spectral bandwidth 11 nm at H line (FWHM) Wavelength accuracy &plusmn, 2.5 nm Wavelength precision 0.3 nm (ASTM E275-93) Noise &plusmn, 15 AU at 254 nm (ASTM E1657-98) Drift 300 AU/h at 254 nm (ASTM E1657-98) Linearity &gt, 2.0 AU at 274 nm (ASTM E1657-98) Maximum data rate 50 Hz (LAN)/20 Hz (Analog) Flow cell Not included (see Accessories / Spare parts) Time constants 0.0 / 0.1 / 0.2 / 0.5 / 1.0 / 2.0 / 5.0 / 10.0 s Integration time Automatic Leak sensor Yes Communication Inputs Error (IN), Start (IN), Autozero, 0 10 V Analog IN Outputs Events 1 3, + 5 V, 24 V Valve Analog outputs 1 x 0 5 V scalable, 20 bit, offset adjustable Control Digital: LAN, remote connector/Analog: wavelength control/Manual: Mobile Control (optional) Programming Timed: wavelength, events, fraction valve, links, wake up (program, link), 9 programs, 50 program lines Technical parameters GLP Detailed report including lamp recognition, operating hours, lamp operating hours, number of lamp ignitions Display Mobile Control (optional) Ambient conditions Temperature range: 4 40 C, 39.2 104 F, Humidity: below 90 % noncondensing General Power supply 100 240 V, 50 60 Hz, 65 W Dimensions 361 x 158 x 523 mm (W x H x D) Weight 5.9 kg

Технические характеристики
