Description

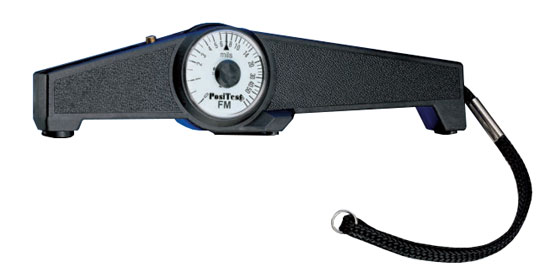

DeFelsko PosiTest Magnetic Pull-Off Coating Thickness Gages measure non-magnetic coatings like paint, enamel, galvanizing, metalizing, and plating, on steel. The PosiTest has extra rugged housing that is unaffected by mechanical shock, water, acid, or solvents and a wear-resistant carbide probe. A V-groove in the probe housing allows for measuring on cylindrical objects.
With fully supported and positive positioning, there are no pivoting tendencies during measurement. Positive visual and audible indicators designate an established thickness reading. The center of the dial cover is easy to remove for calibration adjustment. Options for various applications include F, FM, G, and GM. The PosiTest Pull-Off Coating Gages conform to ASTM D7091/B499, ISO 2808, and others.
PosiTest F & FM
- Ideal for hot dip galvanizing, hard chrome metalizing, paint, enamel, and plastic coating applications on steel.
PosiTest G & GM
- Ideal for electroplating, thin paint films, and phosphating applications on steel.
Технические характеристики
Specs
| Model | F | FM | G | GM |
| Scale | 0-2000 m | 0-80 mils | 0-200 m | 0-8 mils |
| Tolerance | ±,5 m up to 100 m ±,5% of the reading over 100 m | ±, 0.2 mils up to 4 mils ±,5% of the reading over 4 mils | ±,1 m up to 20 m ±,5% of the reading over 20 m | ±,0.04 mils up to 0.8 mils ±,5% of the reading over 0.8 mils |
| Conforms to | ASTM D7091/B499, ISO 2808 and others |
