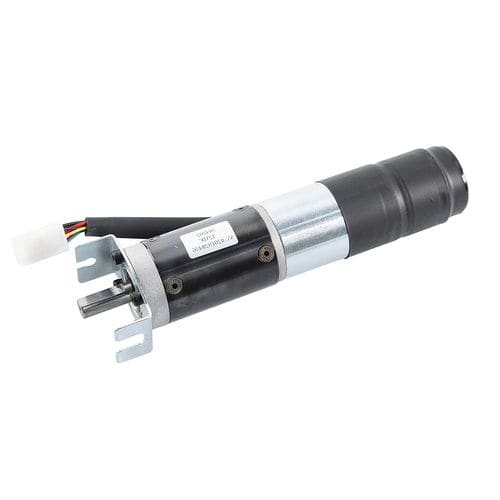

ELECTRIC JACK MOTOR, 26′ POWER STANCE LEVELING JACK GEAR MOTOR LC656216 Model: DZ62ZY-82-146 Voltage 12V DC No-load Current 1.5A No-load Speed 78rpm Rated Current 9.0A Rated Speed 64rpm Rated Torque 9.0N.m Max. Service Current 30A Max. Service Torque 30N.m Gear Ratio 62.8 : 1 ( 3 Stages ) UL, CE, Reach and RoHS approval With 1 Channel 2ppr Magnetic Encoder Customized shaft dimensions and technical specifications are available upon requested Replacement Stabilizer Motor and Gearbox for Lippert Components Ground Control TT Leveling System Item # LC656216
Технические характеристики
CharacteristicsMotor typeDC, permanent magnet, brushedTypespurShaft orientationparallel-shaftShaft configurationsolid-shaftPower50 W…100 WVoltage 12 VTorque5 — 10 Nm, 10 — 20 NmPerformancehigh-torque, high-efficiency, maintenance-free, for heavy loadsProduct applicationsfor vehiclesCertificationsCE, OHSAS 18001, ISO 9001, ISO 14001, ISO/TS 16949Other characteristicscompact, permanent magnet, high-torque, custom, solid-shaft, maintenance-free, with encoder, three-stageGear ratio
62.8 unit
Operating temperature
25 °C (77 °F)
Max.: 65 °C (149 °F)
Min.: -40 °C (-40 °F)
