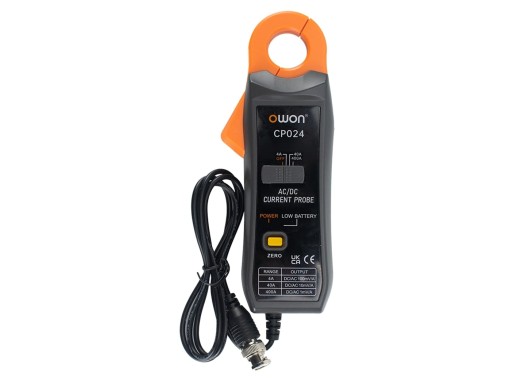

The Owon CP024 current probe has a maximum test range of 400A and a DC bandwidth of 200kHz. This probe has a full jaw size of 23mm. In addition, the CP024 has an ‘Auto zero at power on’ function, which means it is automatically calibrated when you turn the current probe on. Internal settings are adjusted for any offset or error when powered on. Finally, this current probe has a low battery indicator which indicates when the battery should be replaced.
Specifications Max. AC current400 A Max. DC current400 A BandwidthDC 200 kHz Other functionsLow battery indicator, Auto Zero at power on Power supply9V 6F22 battery ConnectivityBNC Jaw size23 mm Dimensions180 x 44 x 30 mm Weight200 g Accessories
The CP024 comes by default with the following:
- Soft bag
