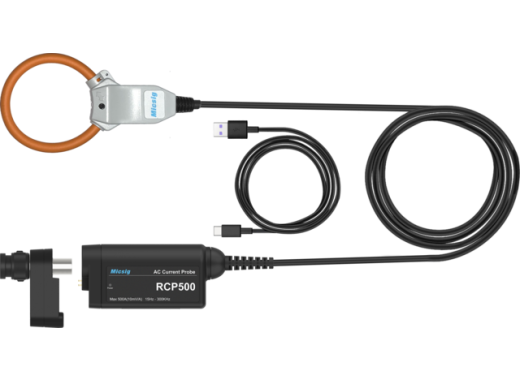

The Micsig RCP500 current probe is a probe that can measure AC current from 200 mA to 500 A with a bandwidth of 15 Hz to 300 kHz. Thanks to the Rogowski coil design the flexible loop can easily be wound around a cable, which enables measurements in hard to reach places. The RCP500 has an accuracy of 1% and a noise of less than 2mV. The probe is powered by a 5V USB output and is thanks to the BNC output compatible with any oscilloscope.
Specifications Bandwidth 15 Hz — 300 kHz Range 200 mA — 500 A (peak) Accuracy 1% Maximum diameter 50 mm Noise Power supply 5V USB Connector type BNC Cable length 2 m Accessories
The Micsig RCP500 is supplied including:
- USB cable
