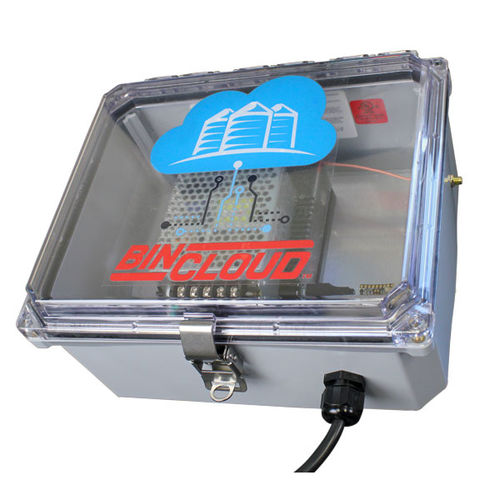

The BinCloud Gateway is used to flow data quickly and seamlessly in and out of a network. In an inventory management system, the BinCloud Gateway receives measurement data from level sensors and sends it to a control room, BinView, or Binventory software. Every BinCloud Gateway is both Ethernet and 2.4 GHz WiFi enabled. Cellular connectivity is also available. The gateway is housed in a 10-inch x 8-inch x 4-inch enclosure made of non-corrosive, UV resistant polycarbonate. The lockable enclosure is rated to NEMA-4X weatherproof standards. The gateway requires a 120-240 VAC power input. Applications — Transmission of data in and out of a sensor network — Component of a local or remote inventory monitoring system — Sending data from level sensors to a software or web application — Transmitting measurements from BinMaster and competitors’ Modbus-capable devices — In a network of FVL-200 / SPL-100 lasers using LoRa communication to FeedView / BinView SaaS Features — Compatible with a variety of network infrastructures — Supports RTU, TCP, and RTU over TCP protocols — Global cellular coverage utilizing 4G LTE, CAT-M, and NB-IoT technologies — Accepts 4-20 mA, digital, mV, RTD, and Potentiometer inputs — Fast update times of two to five seconds — Programmable to automatically switch to cell data in the event of a downed Ethernet or — WiFi network — Cell modem replaceable upon release of next generation cellular — Can connect to multiple Modbus networks simultaneously — Compatible with BinMaster’s wireless technologies to connect remote sensors
