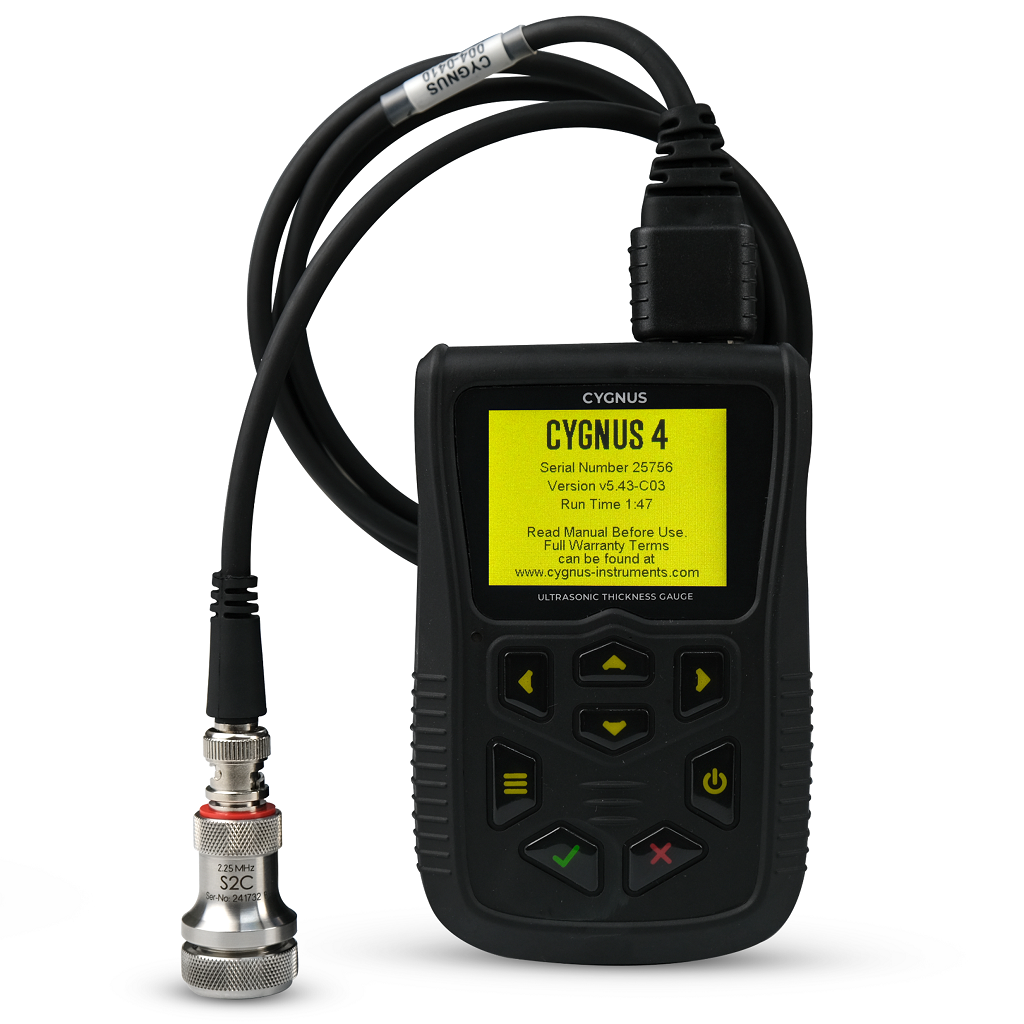

Cygnus 4 General Purpose — Ultrasonic Thickness Gauge
This robust thickness meter is truly simple to use. It has an intuitive menu and, thanks to the Multiple-Echo technique, it accurately measures metal thickness without removing protective coatings.
Key Features of the Cygnus 4 General Purpose Gauge
- Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies
- Deep Coat function ignores coatings up to 0.8 inch (20 mm) thick
- Simple, one-point calibration – no zeroing required
- Min/Max measurement limit functions
- Visual and vibrate alert
- Intuitive easy to use menu
- Large and bright front color LCD display
- Extremely rugged enclosure – shock and impact proof to US MIL STD 810G
- Environmental sealing (water and dust proof) to IP67 – US MIL STD 810G
- Can be upgraded to 4+ or 6+ at an additional cost.
Cygnus-Pioneered Multiple Echo Technique
- Uses three return echoes to give a truly accurate, error-checked metal thickness measurement – ignoring coatings up to 0.8 inch (20 mm).
- Accepted by all the major Classification Societies.
Технические характеристики
Specs
| Materials | Velocities from 0.0390 0.3543 in/us (1,000 9,000 m/s) |
| Accuracy | ±,0.002 inch (±,0.05 mm) in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on |
| Resolution | 0.005 inch (0.1 mm) or 0.002 inch (0.05 mm) |
| Transducer Options | Single crystal transducers |
| Measurement Range in Steel | 0.040 10 inch (1 250 mm) depending on selected transducer and configuration, material and temperature |
| Connector | 2 x Lemo 00 |
| Power | 3 x AA / R6 batteries |
| Battery Life | 10 hours continuous measurement |
| Electronics | Dual channel pulser |
| Display | 2.4 inch QVGA LCD, 47 x 37 mm |
| Size | 3.3 x 5.1 x 1.4 inch (84 x 130 x 35 mm) |
| Weight | 10.5 oz (300 g) (inc. batteries) |
| Operating Temp. | 14F 122F (-10C to 50C) |
| Environmental Rating | IP67 MIL STD 810G Method 501.6 (high temp 131F (+55C)) MIL STD 810G Method 502.6 (low temp -4F (-20C)) MIL STD 810G Method 507.6 (humidity 95%) MIL STD 810G Method 512.6 (immersion 1 metre for 30 mins) |
| Shock and Impact | MIL STD 810G Method 514.7 (vibration) MIL STD 810G Method 516.7 (shock 20g) MIL STD 810G Method 516.7 (transit drop 1.22 m) |
| Standards | Designed for EN 15317 |
| Compliance | CE, UKCA, RoHS |
| Warranty | 3 years on gage and 6 months on transducer |
