Description

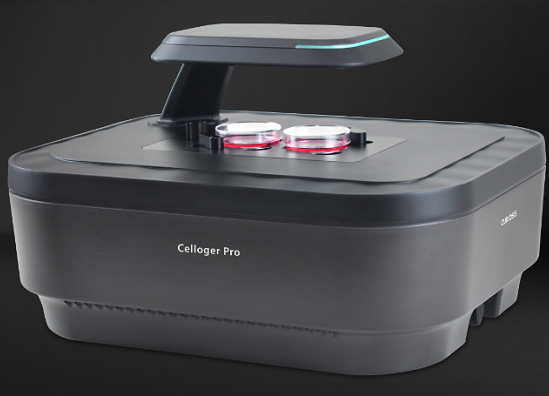

Celloger Pro is an innovative live cell imaging system that redefines research capabilities. With its exceptional image quality and unmatched convenience, it empowers researchers with advanced features. By enabling real-time cell monitoring inside the incubator, it allows for seamless observation and tracking of cellular dynamics without disrupting the natural growth environment. The systems dual fluorescence and bright-field microscopy enable simultaneous visualization of multiple markers, while the multi-point time-lapse imaging captures dynamic cellular events across different locations.
Specifications:
- Imaging modes: Brightfield, Dual fluorescence (Green & Red)
- Objective Lens: 2X, 4X, 10X (User-interchangeable)
- Fluorescence: Green : EX (470/40), EM (540/50) / Red: EX (562/40), EM (641/75)
- Stage: Fully motorized XYZ (Fixed stage, camera moving type)
- Camera: High sensitivity 5.0 MP CMOS
- Imaging positions: Multiple
- Field-of-view: 2X (2.08 x 1.55 mm), 4X (1.46 x 1.09 mm), 10X (0.72 x 0.54 mm)
- Focus: Autofocus, Manual focus
- Imaging methods: Single/multicolor, stitching, stacking, time-lapse, real-time recording
- Included software: Scan App, Analysis App
- Dimensions (H x W x L): 250 x 338 x 412 mm
- Weight: 9.6 kg
- Culture vessels: Well plate up to 96-well, flask, dish, slide
- File export format: TIFF, AVI (JPEG, PNG)
- Operating environment: 10~40℃, 20~95% humidity
- Power requirement: 100-240V, ~50/60Hz
- O/S required: Windows 10 and above
- Incubator specification: Above 200L (recommended)
